Evaluation Kit - MC13892, i.MX35/51 Power Management

KIT13892VKEVBEJ アクティブ

画像にカーソルを合わせると拡大表示されます。

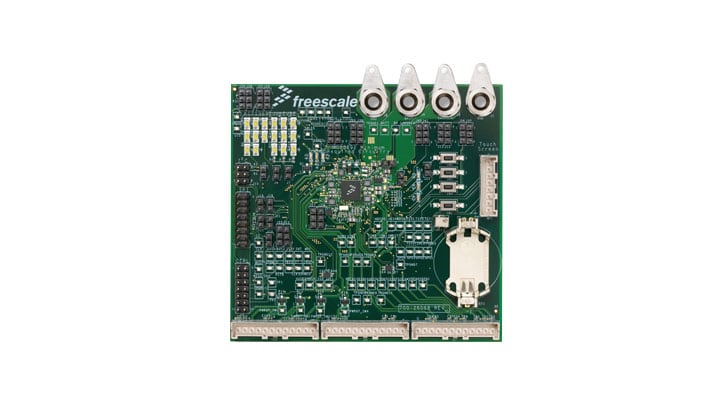

This EVB shows the functionality of the MC13892JVK device set up under specific operation parameters.

The MC13892 is a Power Management Integrated Circuit (PMIC) for our i.MX51, i.MX37, i.MX35, and i.MX27 application processors, targeting netbooks, ebooks, mobile internet devices, smart phones, personal media players, and personal navigation devices. For evaluation purposes this KIT13892VKEVBEJ comes with the KITUSBCOMDGLEVME board for communication and control purposes.

製品詳細

対応製品

パワーマネージメント

PMIC

  • MC13892: Power Management IC (PMIC) for i.MX35/51

Features

Connectivity

  • Four-wire resistive touchscreen interface connector
  • I 2C and SPI communication interface connectors
  • Power control interface connector
  • Banana jack connectors for battery and charger attachments
  • Three 12-pin connectors for switchers, linear regulators, and NMOS power gate switches accessibility
  • Several jumper configurations for PMIC mode of operation

User Components

  • Three RGB LEDs for color mixing or general-purpose signaling
  • 17 white LEDs for backlighting applications
  • Two green LEDs for RESETB and RESETBMCU signaling
  • One red LED for charger attachment signaling

Test Points

  • Scattered test points for different measurements

General Specifications

  • Low Noise Design
  • Battery holder for a CR2477 Li-Ion/Li-Pol coin cell
  • Four Layer Board
  • Top and bottom Layer component placement

購入オプション

KIT13892VKEVBEJ-Image

クリックして展開

  • KIT13892VKEVBEJ
    アクティブ

  • Evaluation Kit - MC13892, Power Management Integrated Circuit (PMIC) for i.MX35/51.

    • KIT13892VKEVBEJ hardware
    • KITUSBCOMDGLEVME hardware
    • Various Cables (8)
    • Quick Reference Guide
  • $635.72
  • の数量に対して 1
    • 在庫:
カートに入れる
