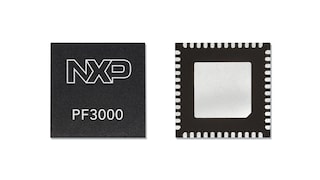

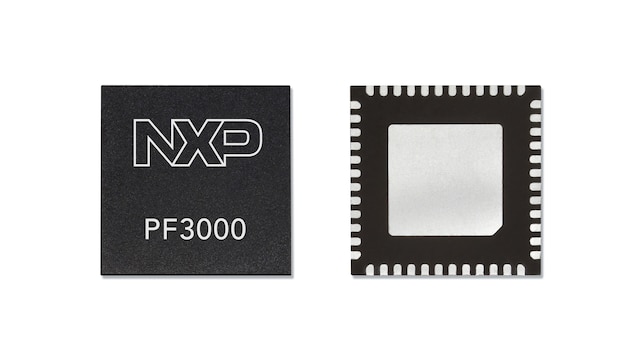

The PF3000 power management integrated circuit (PMIC) features a configurable architecture that supports numerous outputs with various current ratings as well as programmable voltage and sequencing. This enables the PF3000 to power the core processor, external memory and peripherals to provide a single-chip system power solution.

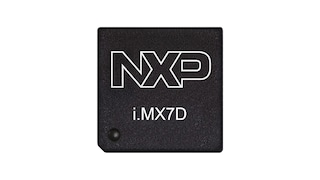

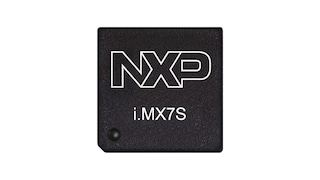

The PF3000 is ideally suited to Cortex® A7 based i.MX 7Solo and i.MX 7Dual application processors to meet low power application requirements. The PF3000 is a great companion for the very low power Cortex® A9 core product family including the i.MX 6DuaLite and all single-core Cortex A9 i.MX processors.
Compatibility with i.MX applications processors are shown in multiple reference designs and facilitates software controlled, dynamic voltage scaling.
Participating products are available for a minimum of 10 years. Designated participating products developed for the automotive, telecom and medical segments are available for a minimum of 15 years.
10-Channel Configurable PMIC for i.MX6 and i.MX7 Application Processors
1-10 の 24 結果
マッチしていない 0 NRND
パーツ | 注文 | コンピュータ支援設計 モデル | 状況 | 標準価格 | 対応MCU | 電源電圧 [最小] (V) | 電源電圧 [最大] (V) | 出力電流 (A) | Number of Buck Regulators | Number of LDO | Switching Frequency LV Buck (MHz) | Number of Boost Regulators | チャネル数 | バッテリ・チャージャ | パッケージタイプ | Ambient Operating Temperature (Min to Max) (℃) | Safety Level | 製品機能 | インターフェースと入力制御 | Junction Temperature (Min to Max) (℃) | 開発ツール |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
アクティブ | 1K @ US$3.11 | i.MX6SX, i.MX6UL, i.MX7D, i.MX7S | 2.8 | 5.5 | 2.75 | 4 | 6 | 2 | 1 | 12 | coin cell battery | HVQFN48 | -40 to 85 | QM | PMICs for i.MX processors, configurable PMICs | I2C | -40 to 125 | KITPF3000FRDMEVM | |||
アクティブ | 1K @ US$3.11 | i.MX7 | 2.8 | 5.5 | 2.75 | 4 | 6 | 2 | 1 | 12 | coin cell battery | HVQFN48 | -40 to 85 | QM | PMICs for i.MX processors, configurable PMICs | I2C | -40 to 125 | KITPF3000FRDMEVM | |||
アクティブ | 1K @ US$3.11 | i.MX7 | 2.8 | 5.5 | 2.75 | 4 | 6 | 2 | 1 | 12 | coin cell battery | HVQFN48 | -40 to 85 | QM | PMICs for i.MX processors, configurable PMICs | I2C | -40 to 125 | KITPF3000FRDMEVM | |||
アクティブ | 1K @ US$3.11 | i.MX6SX, i.MX6UL, i.MX7D, i.MX7S | 2.8 | 5.5 | 2.75 | 4 | 6 | 2 | 1 | 12 | coin cell battery | HVQFN48 | -40 to 85 | QM | PMICs for i.MX processors, configurable PMICs | I2C | -40 to 125 | KITPF3000FRDMEVM | |||
アクティブ | 1K @ US$3.11 | i.MX6SL, i.MX6SX | 2.8 | 5.5 | 2.75 | 4 | 6 | 2 | 1 | 12 | coin cell battery | HVQFN48 | -40 to 85 | QM | PMICs for i.MX processors, configurable PMICs | I2C | -40 to 125 | KITPF3000FRDMEVM | |||
アクティブ | 1K @ US$3.11 | i.MX6SL, i.MX6SX | 2.8 | 5.5 | 2.75 | 4 | 6 | 2 | 1 | 12 | coin cell battery | HVQFN48 | -40 to 85 | QM | PMICs for i.MX processors, configurable PMICs | I2C | -40 to 125 | KITPF3000FRDMEVM | |||

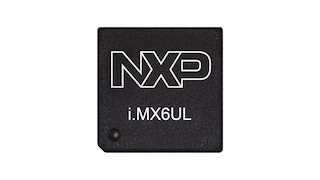

アクティブ | 1K @ US$3.11 | i.MX6UL | 2.8 | 5.5 | 2.75 | 4 | 6 | 2 | 1 | 12 | coin cell battery | HVQFN48 | -40 to 85 | QM | PMICs for i.MX processors | I2C | -40 to 125 | KITPF3000FRDMEVM | |||
アクティブ | 1K @ US$3.11 | i.MX6UL | 2.8 | 5.5 | 2.75 | 4 | 6 | 2 | 1 | 12 | coin cell battery | HVQFN48 | -40 to 85 | QM | PMICs for i.MX processors | I2C | -40 to 125 | KITPF3000FRDMEVM | |||

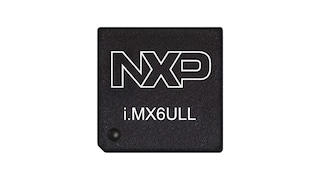

アクティブ | 1K @ US$3.11 | i.MX6UL, i.MX6ULL | 2.8 | 5.5 | 2.75 | 4 | 6 | 2 | 1 | 12 | coin cell battery | HVQFN48 | -40 to 85 | QM | PMICs for i.MX processors, configurable PMICs | I2C | -40 to 125 | KITPF3000FRDMEVM | |||
アクティブ | 1K @ US$3.55 | i.MX6SL, i.MX6SX, i.MX6UL, i.MX7D, i.MX7S | 2.8 | 5.5 | 2.75 | 4 | 6 | 2 | 0 | 10 | coin cell battery | HVQFN48 | -40 to 105 | QM | PMICs for i.MX processors, configurable PMICs | I2C | -40 to 125 | KITPF3000FRDMEVM |
