車載アプリケーション向けデュアル・チャネルPMIC - 高効率LVBUCK x 2、ASIL Bセーフティ・レベルに適合

PF5200 アクティブ

画像にカーソルを合わせると拡大表示されます。

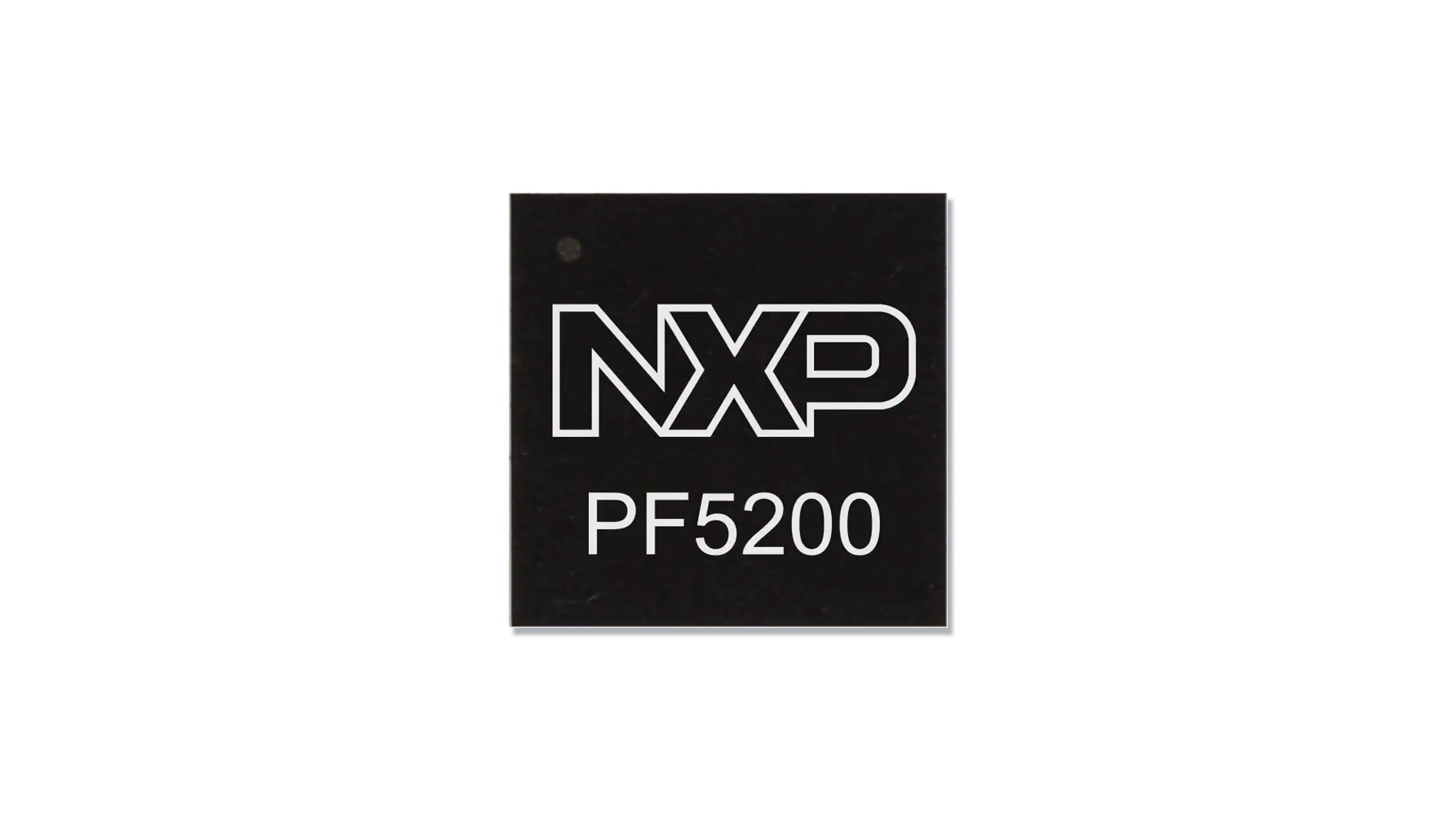

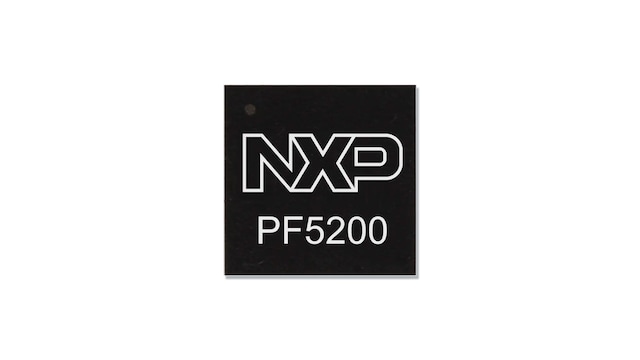

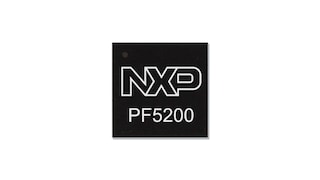

PF5200は、高性能の車載アプリケーション向けに設計されたマルチチャネルPMICデバイスです。また、PF5200は構成を柔軟に変更できるため、優れたコンパニオンとして、さまざまなシステムレベルの電源要件に対応できます。

内蔵された電圧モニタリング回路によって、ISO 26262標準およびASIL Bまでの機能安全レベルに確実に準拠します。さらにPF5200は、ISO 26262への準拠を必要としない用途での標準的な非セーフティ・デバイスとしても利用できます。

PF5200は、PF502xファミリなどの他のNXP PMICやFS85ファミリなどのSBCと組み合わせて、インフォテイメント、ADAS、ビジョン、レーダーなどのアプリケーション向けの大電流コア電源に適しています。

このデバイスは、S32プロセッサ・ベースのアプリケーションやDDRメモリ電源に適しています。

ブロック図

PF5200デュアル・チャネルPMIC

PF5200 Dual Channel PMIC Block Diagram
図を取得する PDF

特長

システムの特長

  • 2つの高効率降圧コンバータ
  • 32ピン5x5 FC-QFNパッケージ
  • DDR4、EthernetPHY、S32R45 MCUをサポート
  • 出力電流8 A
  • OTP（ワンタイム・プログラマブル）メモリによる柔軟なデバイス構成
  • 高速I2Cインターフェースと入力制御 (3.4 MHz)
  • PGOODモニタリング回路
  • 外部クロック同期
  • 周波数拡散スペクトラム

ASIL Bセーフティ・レベルに適合するモニタリング回路

  • ASIL Bセーフティ・レベルに適合する独立回路
  • プログラム可能な故障保護による電圧モニタリング
  • 高度な温度モニタリングと保護
  • プログラム可能な内部ウォッチドッグ・タイマ
  • I2C CRCおよび書き込み保護機構
  • アナログ内蔵セルフテスト (ABIST)

プログラマビリティ

  • ワンタイム・プログラマブル (OTP) メモリによって、電源、シーケンス、および特定の機能をプログラム可能
  • 開発段階で評価ボードを利用してカスタムOTPパーツのプログラミングが可能
  • カスタムOTPは生産用としてもご提供可能です。NXPの販売窓口（NXPまたは販売代理店）までお問い合わせください
  • GUIツールを使用してカスタムOTPを作成可能

比較表

標準構成

品番 説明 OTP ID 安全グレード パッケージ
MPF5200AMBA1 LX2160A BA1レポート、プログラミングおよび設定ファイル ASIL B HWQFN32
MPF5200AMBA2 LX2160A BA2レポート、プログラミングおよび設定ファイル ASIL B HWQFN32
MPF5200AMBA3 LX2160A BA3レポート、プログラミングおよび設定ファイル ASIL B HWQFN32
MPF5200AMBA4 S32R45 BA4レポート、プログラミングおよび設定ファイル ASIL B HWQFN32
MPF5200AMMG2 LA1224 MG2レポート、プログラミングおよび設定ファイル QM HWQFN32
MPF5200AMMG3 LA1224 MG3レポート、プログラミングおよび設定ファイル QM HWQFN32
