IMX-OS08A20
アクティブ -

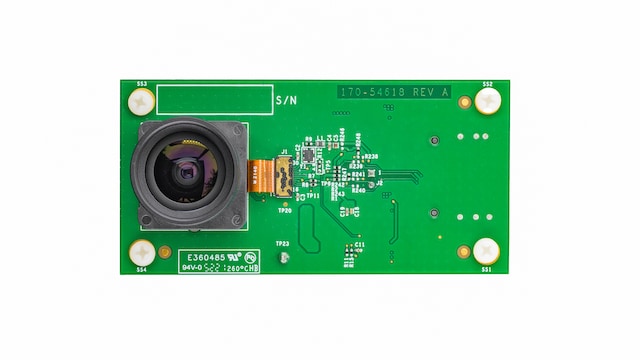

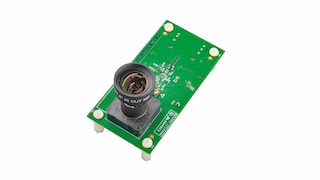

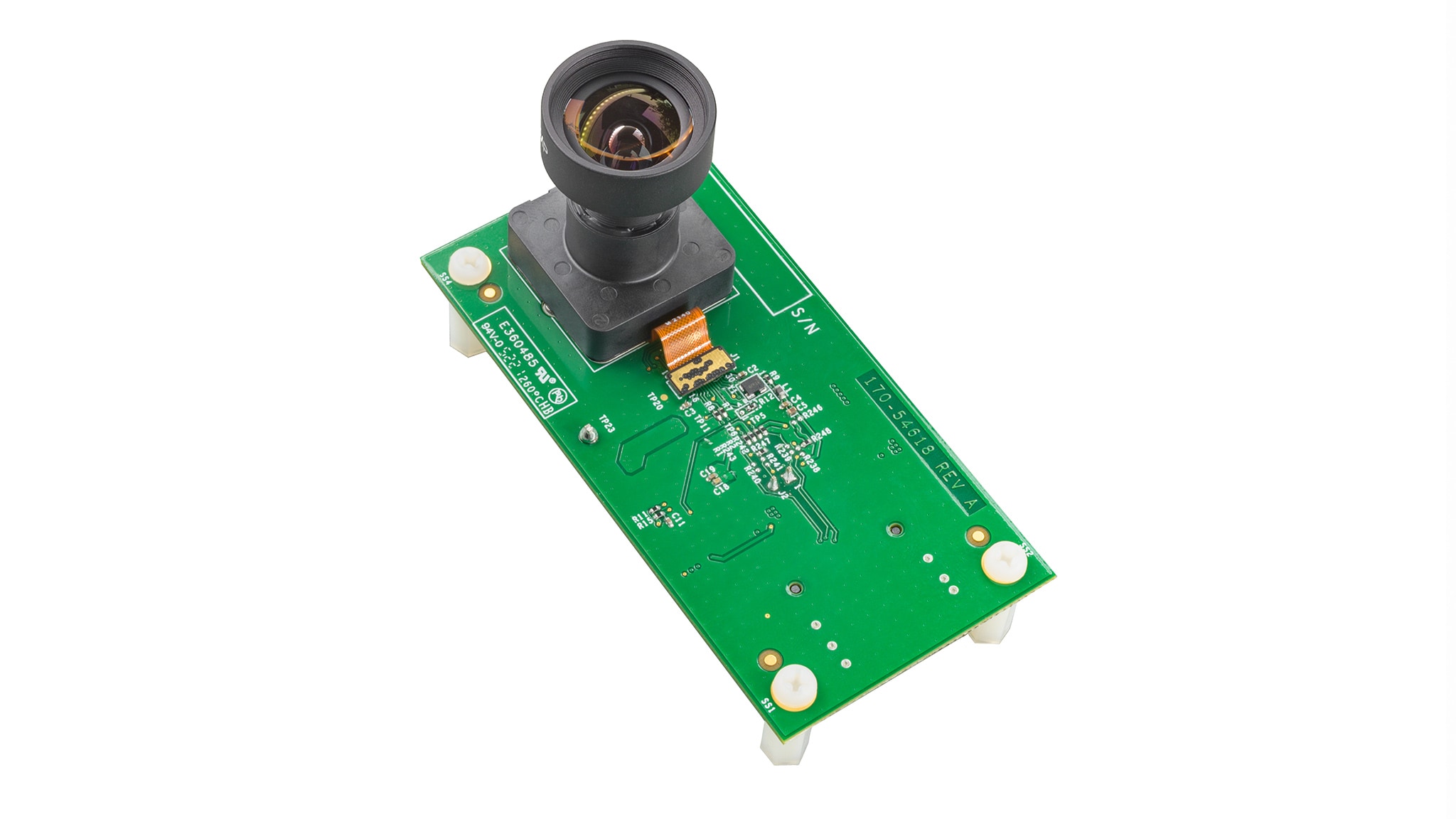

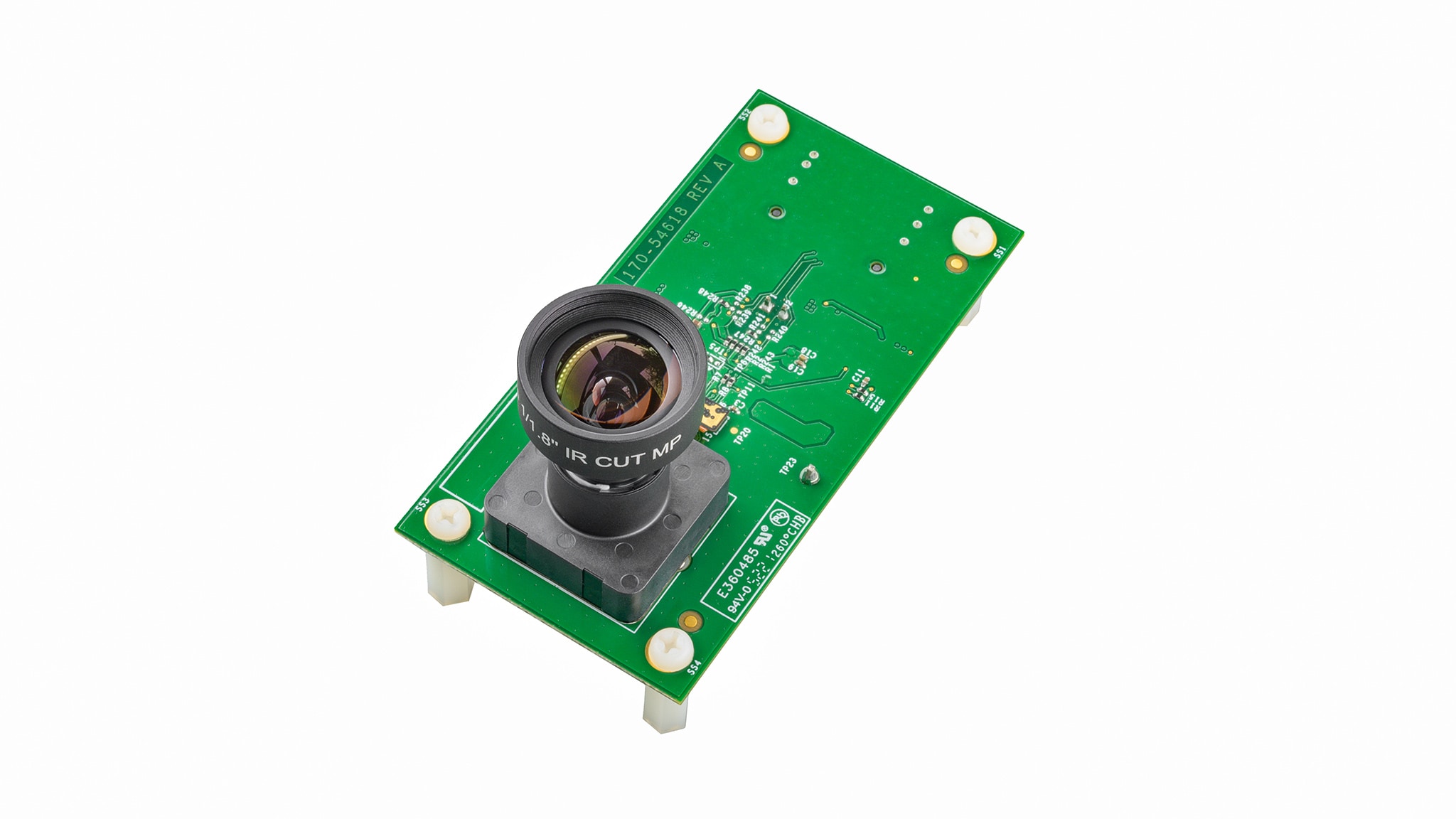

4K MIPI CMOS Camera Module.
4K MIPI CMOS Camera Module
The camera module can be used for consumer applications that require high-resolution image capture.
- The 4K CMOS camera module uses OS08A20 sensor from OmniVision.
- It is a high performance,1/2-inch, 8 megapixel (8MP), CMOS image sensor that delivers 3840x2160 at 30 fps.
- It provides full-frame and windowed 10/12-bit MIPI/LVDS images in various formats.

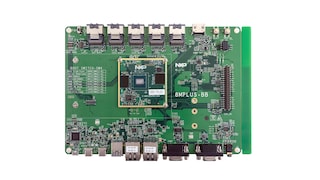

- The module can be enabled easily using the i.MX 8M Plus applications processor evaluation kit (EVK) for applications requiring vision.
- The camera module driver is optimized for the i.MX 8M Plus SoC. The processor includes dual ISPs and provides excellent image quality.

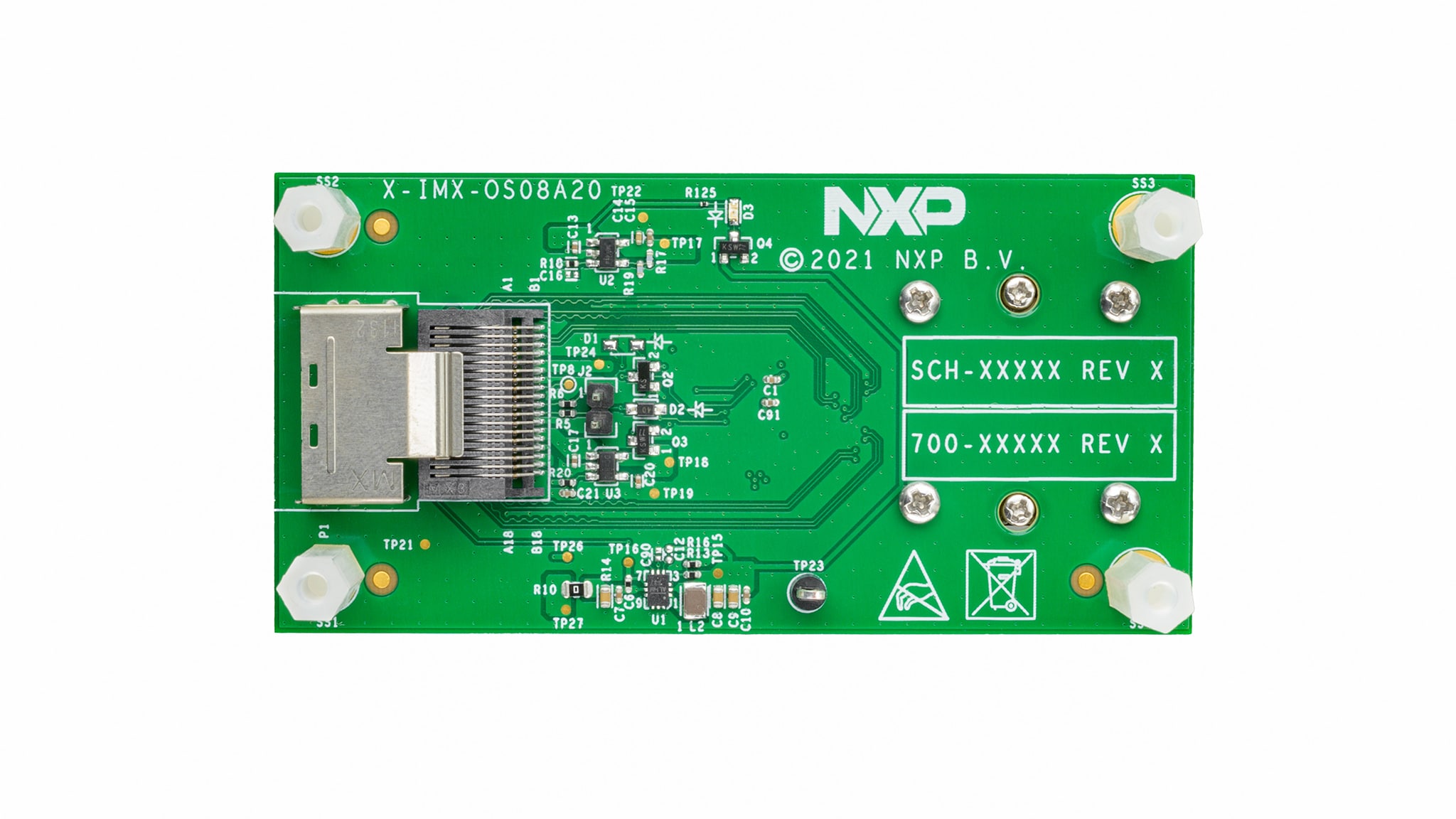

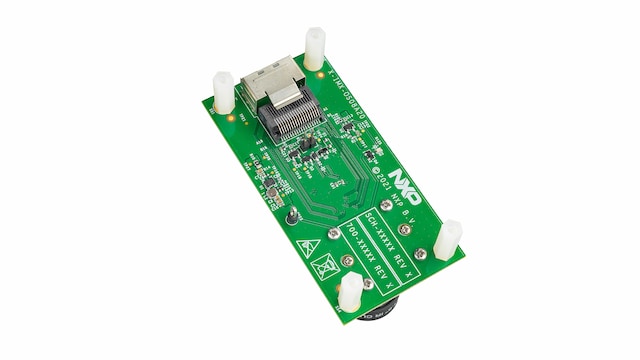

- The camera kit includes an 8MP image sensor, a MINI-SAS cable and an adapter board to connect the EVK board and the sensor by MINI-SAS connectors.
製品詳細
Features
Image Sensor
- Color CMOS 8 Megapixel PureCel Image Sensor with Nyxel Technology
- 2um x 2um pixel
- Supports output formats: 10/12-bit RAW RGB
- Supports images sizes: 4K (3840x2160), 2560x1440, 1080p (1920x1080), 720p (1280x720)
- 2-exposure staggered HDR support
- Light Sensing Mode (LSM)
- PLL with SSC support
Frame Rate
- 4K@30FPS
Max S/N ratio
- 39 dB
Dynamic Range
- 74 dB @ 16x gain
購入オプション
ドキュメント
クイック・リファレンス ドキュメンテーションの種類.
4 ドキュメント
-
アプリケーション・ノート
OS08A20 ISP Sensor on i.MX 8M Plus EVK
-
クイック・リファレンス・ガイド
i.MX 8M Plus EVK Quick Start Guide
