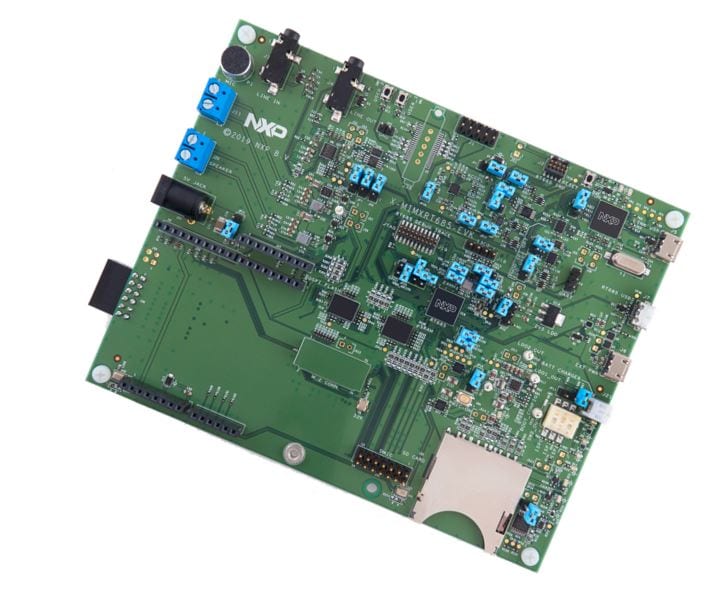

i.MX RT600 Evaluation Kit

MIMXRT685-EVK
アクティブ

画像にカーソルを合わせると拡大表示されます。

The i.MX RT600 EVK (MIMXRT685-EVK) features NXP’s advanced implementation of the Arm® Cortex®-M33 core, combined with the highly optimized Cadence® Tensilica® HiFi 4 DSP processor core. MIMXRT685-EVK supports development for the MIMXRT685 and MIMXRT633 products and its features make it ideal for ML/AI, voice and audio applications. The i.MX RT600 EVK can help jump start your next design with the included schematics and layout files.

製品詳細

対応製品

パワーマネージメント

PMIC

ロード・スイッチ

  • NX5P3090UK: USB PDおよびType-C電流制限電源スイッチ

プロセッサ＆マイクロコントローラ

i.MX RTクロスオーバーMCU

  • i.MX-RT600: i.MX RT600 Arm® Cortex®-M33およびDSPコア搭載クロスオーバーMCU

Features

Processor

  • MIMXRT685SFVKB
    • Cortex-M33 running up to 300 MHz
    • Cadence® Tensilica® HiFi 4 running up to 600 MHz
    • VFBGA 176 package

Board Memory

  • Macronix Octal Flash
  • AP Memory PSRAM

Debug Capabilities

  • 10-pin and 20-pin JTAG/SWD connectors supporting external debug/trace probes
  • On-board debug probe, with VCOM and CMSIS-DAP or J-link firmware options

Expansion Connectors

  • Arduino expansion
  • PMOD expansion
  • Expansion connector for 8-channel microphone board
  • I3C header
  • Flexcomm header

User Interface

  • Reset and User buttons for easy testing of software functionality
  • User LEDs

Connectivity

  • High/full-speed USB port with micro-A/B connector for the host or device functionality
  • SD Card slot

Sensors

  • NXP FXOS8700CQ accelerometer

    Note: FXOS8700CQ accelerometer is in “End of Life” status

Audio and Voice

  • Dual Knowles SPH0641lM4H digital microphone
  • Stereo audio codec with Audio Line In/Out
  • Dual class D amplifiers with speaker connectors

もっと見る

購入オプション

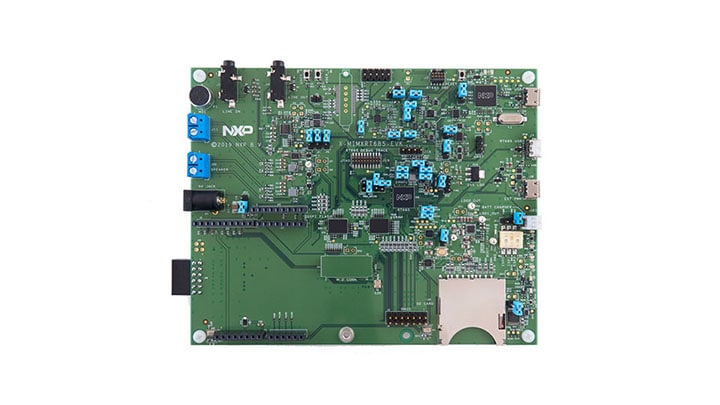

MIMXRT685-EVK-Image

クリックして展開

  • MIMXRT685-EVK
    アクティブ

  • i.MX RT600 Evaluation Kit.

  • Kit Contains

    • EVK hardware
    • MicroUSB cable
    • Quick Start Guide
  • $148.35 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 8
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
IMXRT600-AUD-EVK-Image

クリックして展開

  • IMXRT600-AUD-EVK
    アクティブ

  • i.MX RT600 Evaluation Kit.

  • Kit Contains

    • EVK hardware
    • MicroUSB cable
    • Quick Start Guide
  • $171.35 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 19
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
