4K dart BCON for MIPI camera module for i.MX 8M Plus Applications Processor

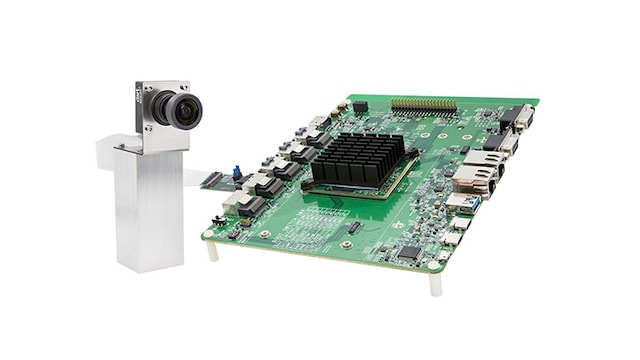

The 4K dart BCON for MIPI camera module by Basler provides a starting point to easily add vision to applications to
the i.MX 8M Plus applications processor through the evaluation kit (EVK).
The driver is optimized for the i.MX 8M Plus applications processor with the integrated dual camera Image Signal

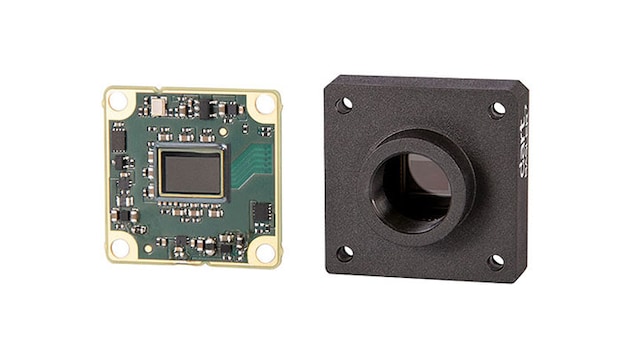

Processor (ISP) and provides an excellent image quality. The camera kit comes with an 8MP dart BCON for MIPI camera
module, cable, fitting lens and a Mini-SAS to BCON for MIPI adapter. It offers a MIPI-CSI2 interface with 4-Lane
D-Phy output.
Click here to view or purchase the Basler Add-on Camera Kit to add vision to the i.MX 8M Plus Evaluation Kit.
製品詳細
対応製品
プロセッサ＆マイクロコントローラ
i.MX 8アプリケーションプロセッサ
- IMX8MPLUS: i.MX 8M Plus - Arm® Cortex®-A53、機械学習、ビジョン、マルチメディア、インダストリアルIoT
Features
Image Sensor
- On Semiconductor Premium 4K with superb HDR high performance RGB Bayer CMOS sensor
- 8MP (3840 px x 2160 px)
- 2.1 µm Backside Illuminated (BSI) pixel
- Electronic rolling shutter
-
Operating point:
- 3 exposure HDR mode with on-chip reconstruction
- 120 dB Dynamic Range
Frame Rate
- 30fps@4K
Interface
- MIPI CSI-2
- 4-Lane D-Phy
- Basler BCON for MIPI interface
Basic V4L2 driver
- Basic functionality to work with the camera module
- Auto features
- Driver integrated into NXP Software BSP
Basler Pylon Software Suite
- Unified SDK for BCON for MIPI, USB3 Vision and GigE Vision cameras
- Camera access from source code, GUI or 3rd party software
- Full feature support including guidance, tooltips, error handling
- Easy-to-use and high-performance pylon viewer for camera evaluation
-
Important Machine Vision features:
- Triggering
- Individual image capture
- Highly differentiated camera configuration option
- Easy access to custom features
- GenTL and Basler pylon APIs
- Driver available on www.baslerweb.com/nxp-software
4K lens
- Easy to exchange M12 (S-Mount) lens
- 4K Resolution
- 4.0 mm Focal length, 116° horizontal field of view
Flat flex cable
- 0.2 m flexible flat cable
パートナー
Basler is a leading manufacturer of high-quality cameras and camera accessories for industry, medicine, traffic and a variety of other markets.
