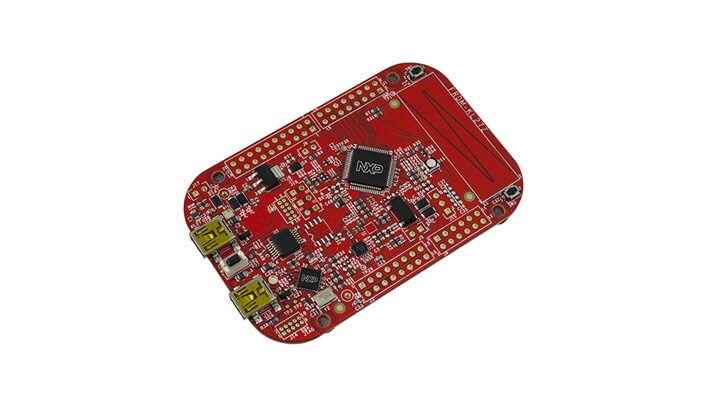

Freedom® Development Platform for Kinetis® KL17 and KL27 MCUs

FRDM-KL27Z
アクティブ

画像にカーソルを合わせると拡大表示されます。

FRDM-KL27Z RevB1 will no longer feature a MAG3110 Magnetometer due to EOL. The SDK is not affected.

The FRDM-KL27Z is an ultra-low-cost development platform for the Kinetis® L Series KL17 and KL27 MCUs built on the Arm® Cortex®-M0+ processor.

  • Features include easy access to MCU I/O, battery-ready, low-power operation, a standards-based form factor with expansion board options and a built-in debug interface for flash programming and run-control
  • The FRDM-KL27Z is supported by a range of NXP® and third-party development software

製品詳細

対応製品

プロセッサ＆マイクロコントローラ

KLシリーズ Arm Cortex-M0+

  • KL1x: Kinetis® KL1x-48 MHz, Mainstream Small Ultra-Low Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core
  • KL2x: Kinetis® KL2x-72/96 MHz, USB Ultra-Low-Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core

インターフェース

USBインターフェース

Features

Microcontroller

    MKL27Z64VLH4 MCU

  • 48 MHz
  • 64 kB Flash
  • 16 kB SRAM
  • 64 LQFP

Debug

  • P&E Debug interface provides run-control debugging and compatibility with IDE tools
  • New, OpenSDA debug interface
  • CMSIS-DAP interface: new Arm® standard for embedded debug interface

Power Management

  • Battery-ready, power-measurement access points
  • Flexible power supply options
    • USB
    • Coin cell battery
    • External source

Connectivity

  • Easy access to MCU I/O
  • Form factor compatible with Arduino® Rev3 pin layout

Tools and OS Support

  • Arm® Mbed™ enabled

Memory

  • Mass storage device flash programming interface (default) – no tool installation required to evaluate demo apps

Sensors

  • Accelerometer MMA8451Q
  • Capacitive touch slider
  • Thermistor sensor to measuring temperature

User Components

  • Tri-color LED
  • Two (2) user push-button switches for NMI interrupts and LLWU wake-up (SW1/SW3)

もっと見る

購入オプション

FRDM-KL27Z-Image

クリックして展開

  • FRDM-KL27Z
    アクティブ

  • Freedom Development Board for Kinetis KL17/KL27 (32-64 KB Flash) MCUs.

    • FRDM-KL27Z hardware
    • Quick Reference Card
    • Additional hardware required: USB A-to-MiniB cable (not included)
  • $46.00 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 18
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
