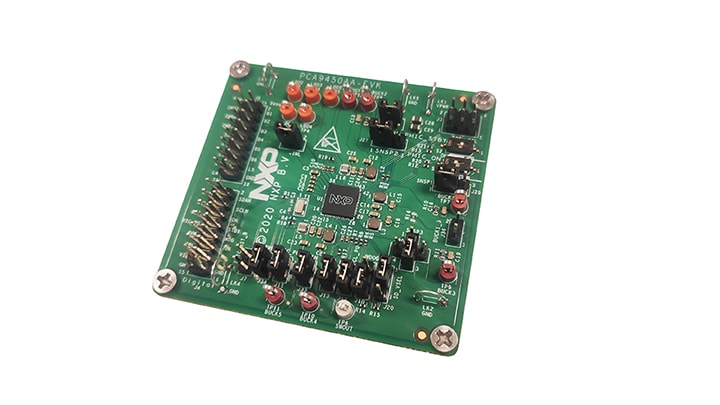

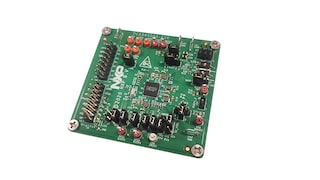

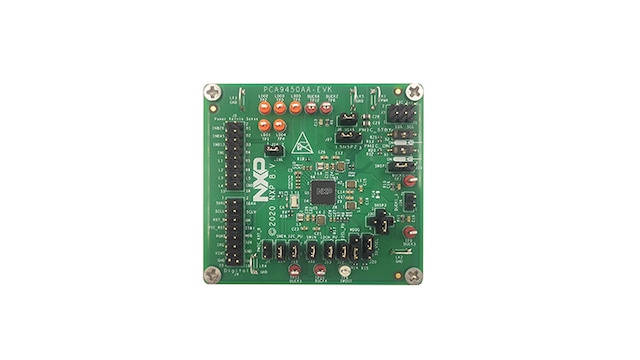

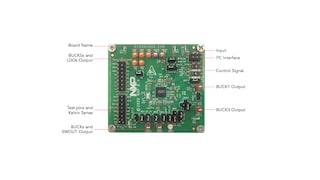

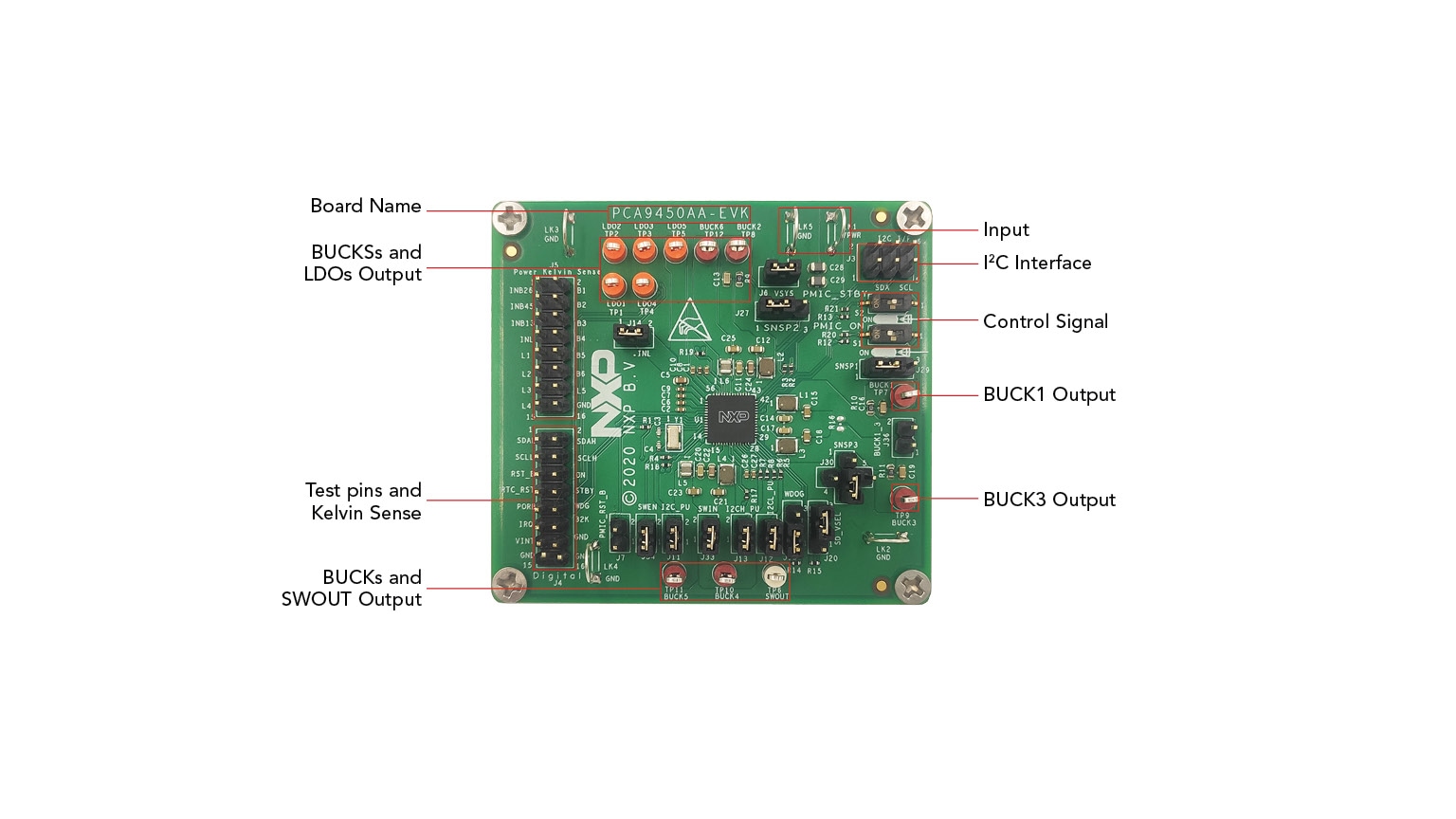

PCA9450AA-EVK
アクティブ -
PCA9450 Evaluation Board.
Kit contains:
- Assembled and tested PCA9450AA evaluation board in an anti-static bag
- USB to MPSSE Serial cable for I²C communication
- Spare jumpers
- SCREW and STANDOFF
PCA9450 Evaluation Board

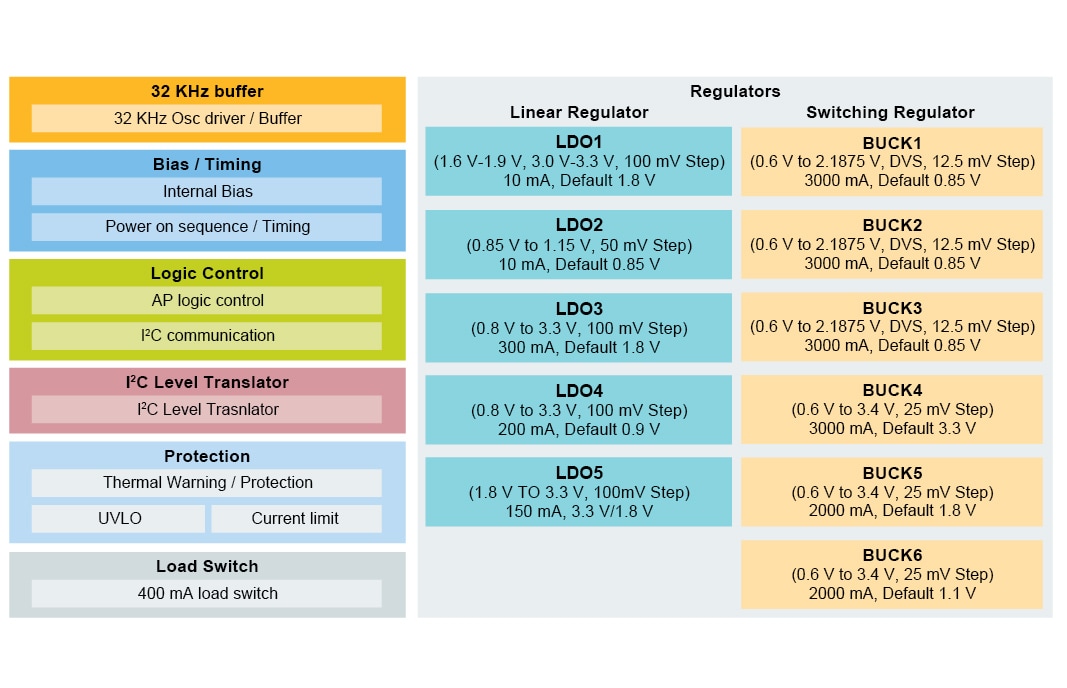

The PCA9450 is a single chip Power Management IC (PMIC) specifically designed to support i.MX 8M family processor.
The device provides six high-efficiency step-down regulators, five LDOs, one 400mA load switch, 2 channel level translator and 32.768KHz crystal oscillator driver.
PCA9450 has three versions:
- PCA9450AA is companion PMIC for i.MX 8M Mini
- PCA9450B is companion PMIC for i.MX 8M Nano
- PCA9450C is companion PMIC for i.MX 8M Plus
製品詳細
対応製品
パワーマネージメント
PMIC
- PCA9450: i.MX 8M Mini/Nano/Plus用パワー・マネジメントIC
Features
Key Features
- Six High-Efficiency step down regulators
- Five Linear regulators
- 400 mA load switch with active discharge 32.768 kHz crystal oscillator buffer output level translator
- Power control IO
- Fm+ 1 MHz I²C Interface
- ESD protection
- 7mm x 7mm, 56-pin HVQFN with 0.4 mm pitch
- Three 3 A Buck regulators with DVS feature and remote sense
- PCA9450AA – Three 3 A buck regulators
- PCA9450B – Two 3 A buck regulators
- PCA9450C – Dual-phase configurable 6A buck regulator
- One 3 A buck regulator
- Two 2 A buck regulators
I²C to USB Tool
- FTDI C232HM-EDHSL-0
Connectivity
- I²C connectivity support
Supported MPU
- PCA9450AA attaches I.MX8M Mini
- PCA9450B attaches I.MX8M Nano
- PCA9450C attaches I.MX8M Plus
購入オプション
-

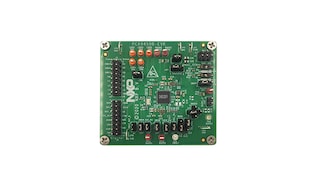

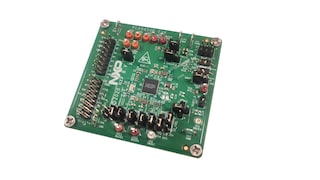

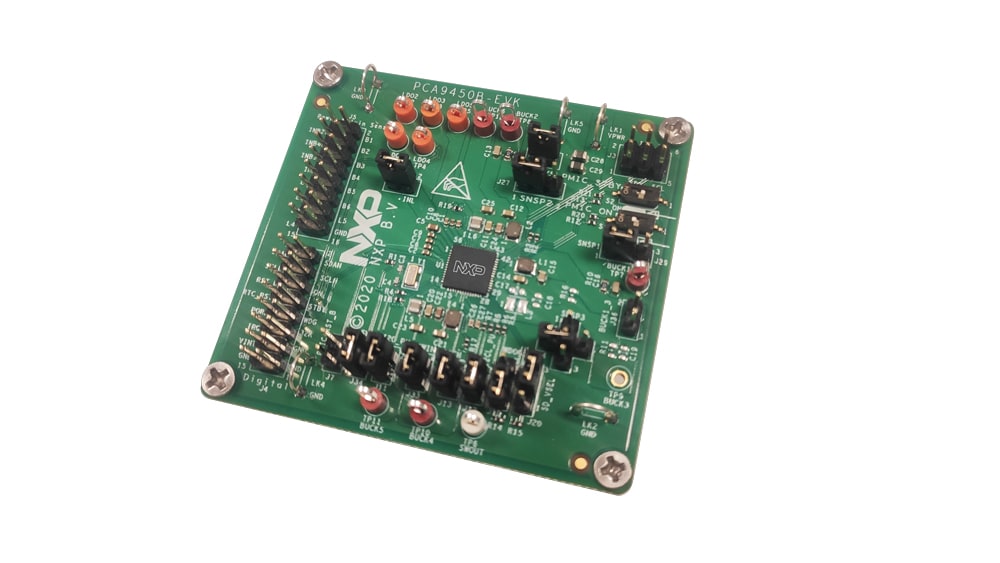

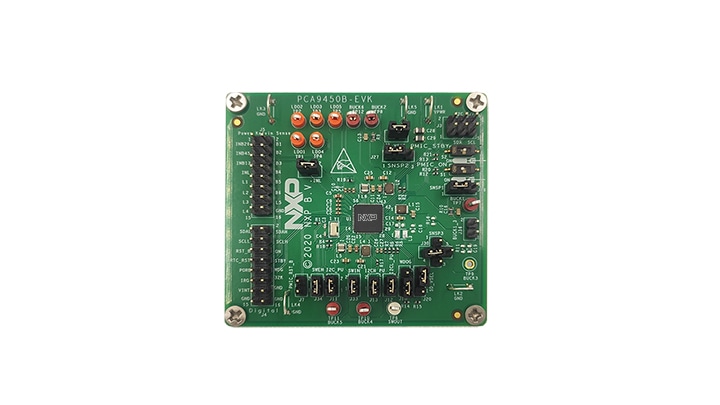

PCA9450B-EVK
アクティブ -
PCA9450 Evaluation Board.
Kit contains:
- PCA9450B evaluation hardware board
- USB to MPSSE Serial cable for I²C communication
- Spare jumpers
- SCREW and STANDOFF
-

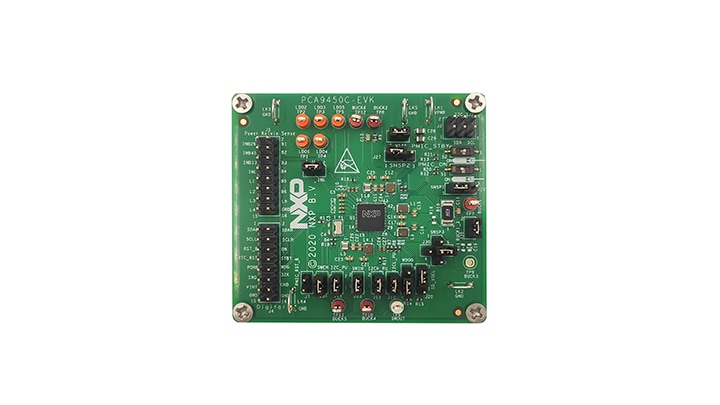

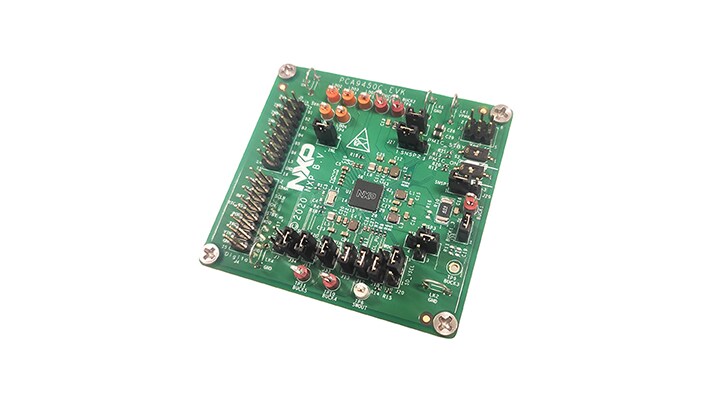

PCA9450C-EVK
アクティブ -
PCA9450 Evaluation Board.
Kit contains:
- PCA9450C evaluation hardware board
- USB to MPSSE Serial cable for I²C communication
- Spare jumpers
- SCREW and STANDOFF
ドキュメント
クイック・リファレンス ドキュメンテーションの種類.
4 ドキュメント
-
ユーザ・ガイド
UM11556 - PCA9450 evaluation board - User Manualはじめに
-
アプリケーション・ノート
PCA9450 Application Note
設計・リソース
ソフトウェア
クイック・リファレンス ソフトウェア・タイプ.
1 ソフトウェア・ファイル
-
設定ツール
PCA9450 GUI Software
注: より快適にご利用いただくために、ソフトウェアのダウンロードはデスクトップで行うことを推奨します。
