S32K118-Q048 Evaluation Board for Automotive General Purpose

S32K118EVB
アクティブ

画像にカーソルを合わせると拡大表示されます。

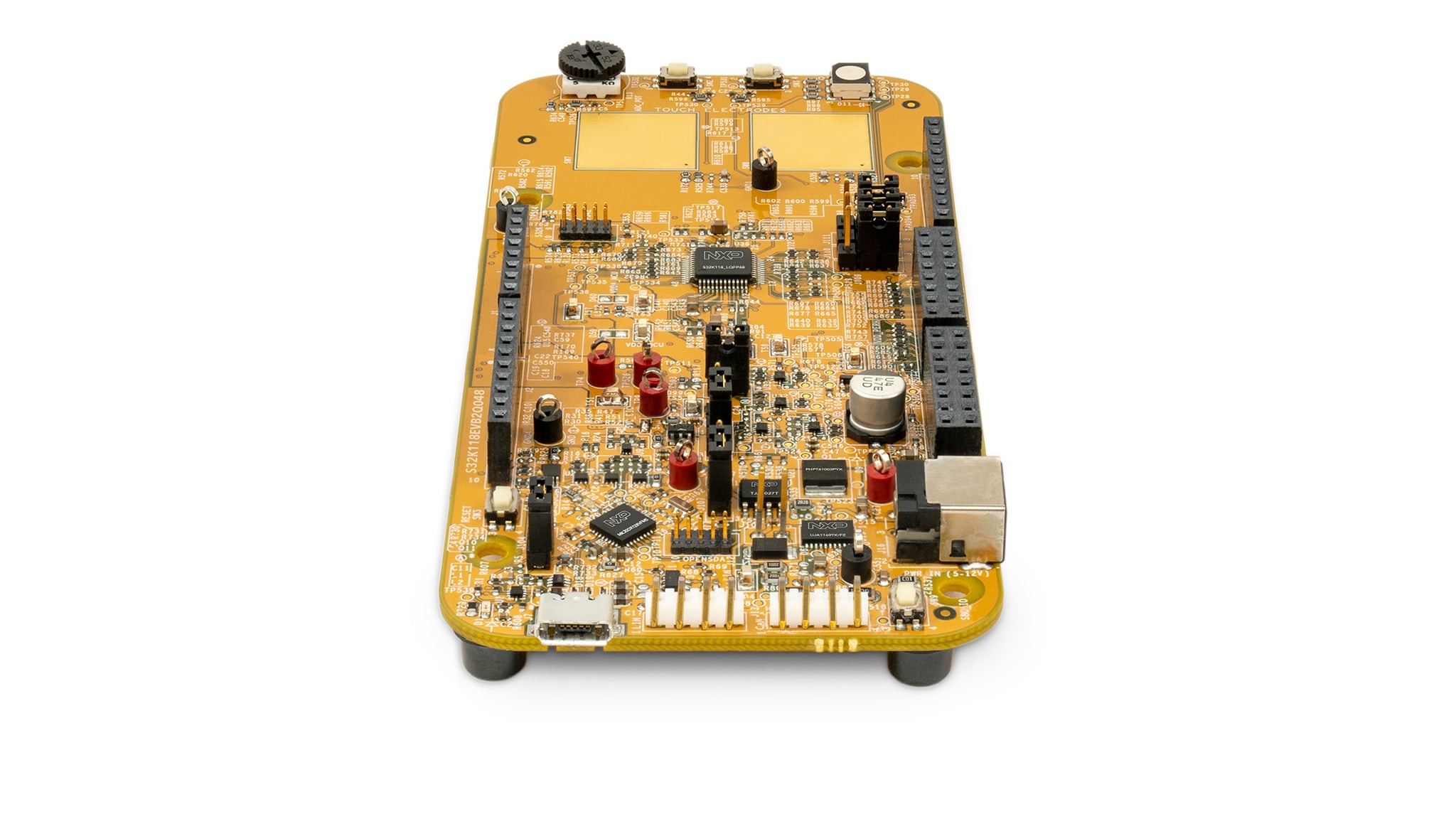

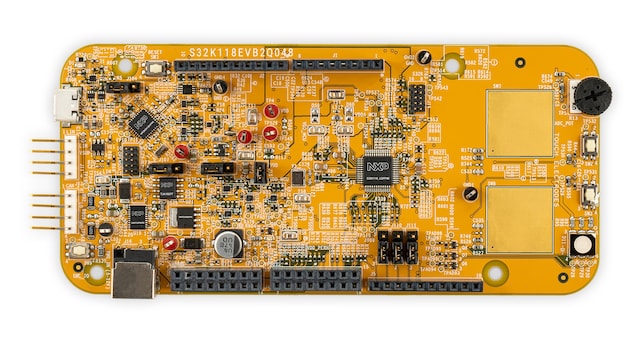

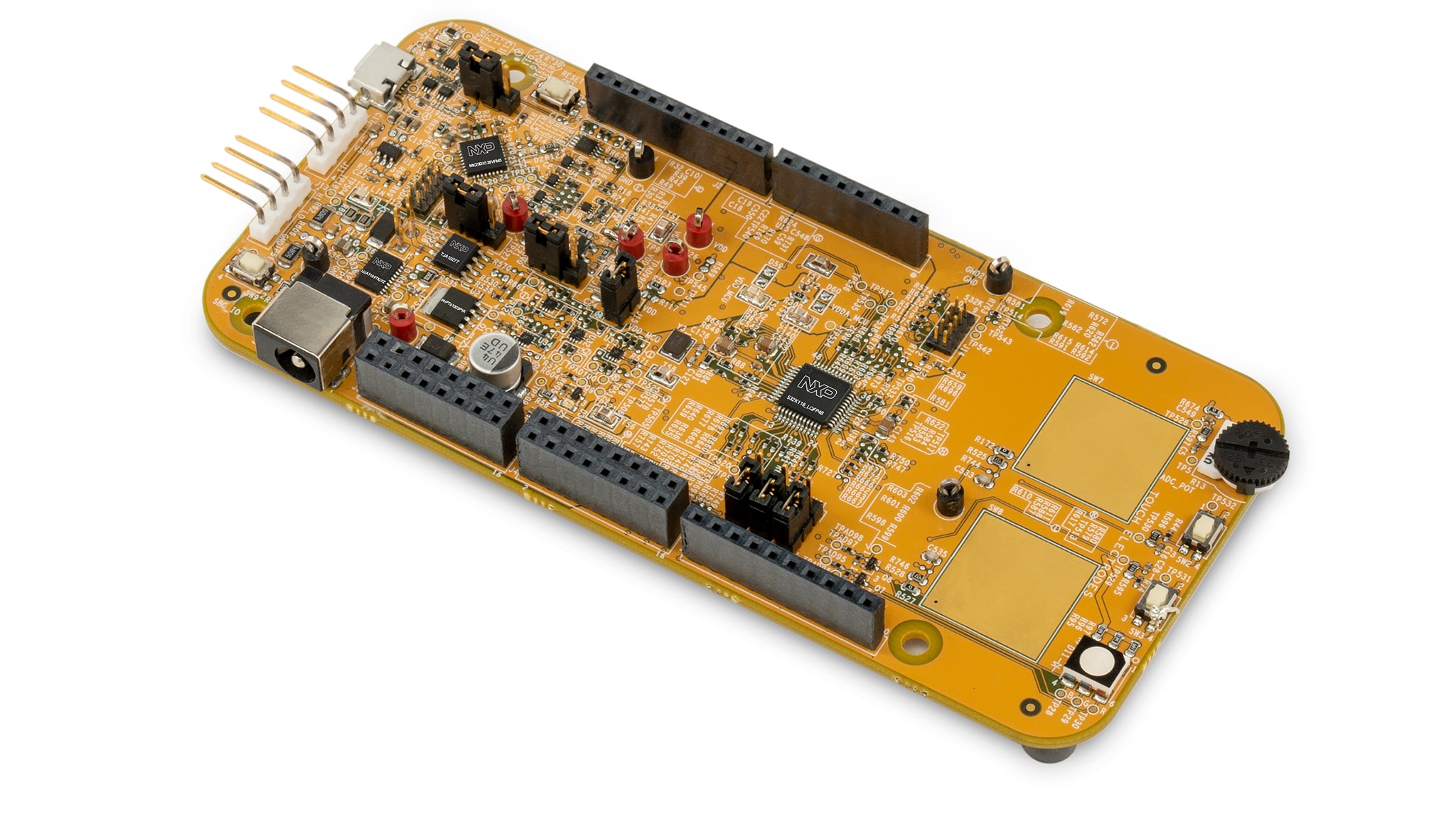

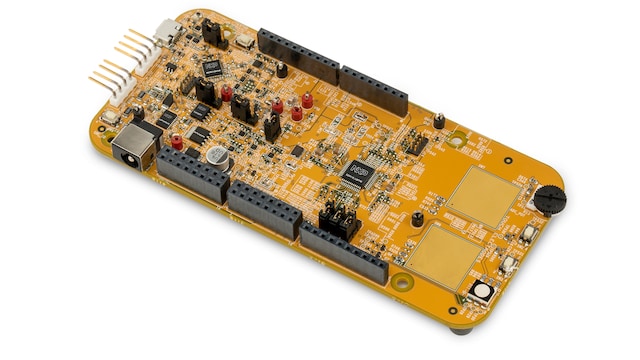

The S32K118EVB2Q048 is a low-cost evaluation and development board for general-purpose industrial and automotive applications.

Based on the 32-bit Arm® Cortex®-M0+ S32K11 MCU, the S32K118EVB offers a standard-based form factor compatible with the Arduino® UNO pin layout, providing a broad range of expansion board options. The S32K118EVB integrates a security module complying Secure Hardware Extension (SHE) specification for quick application prototyping and demonstration.

製品詳細

対応製品

インターフェース

オートモーティブLINソリューション

  • TJA1027: LIN 2.2A/SAE J2602 Transceiver

パワーマネージメント

セーフティSBC

  • UJA1169TK: Mini High-Speed CAN System Basis Chip

プロセッサ＆マイクロコントローラ

S32K 車載汎用MCU

  • S32K1: S32K1 車載向け汎用マイクロコントローラ

Technical and Functional Specifications

Microcontroller (MCU)
  • 32-bit Arm® Cortex®-M0+ based S32K118
System Basis Chip (SBC)
  • UJA1169TK: Mini high-speed CAN system basis chip
Transceivers
  • TJA1027: LIN 2.2A/SAE J2602 transceiver
Adapters
  • OpenSDA: Serial and Debug Adapter with support for several industry-standard debug interfaces
  • Easy access to the MCU I/O header pins for prototyping
Size and Price
  • Small form factor
  • Low cost
Compatibility
  • Arduino® UNO pint-out compatible with expansion “shield” support
Interfaces
  • On-board connectivity for CAN, LIN, UART/SCI
Power
  • Flexible power supply options: micro USB or external 12 V supply
Components
  • 2 x touchpads
  • 1 x potentiometer
  • 1 x RGB LED
  • 2 x push buttons

購入オプション

S32K118EVB2Q048-Image

クリックして展開

  • S32K118EVB2Q048
    アクティブ

  • S32K118-Q048 Evaluation Board for Automotive General Purpose.

  • Kit Contains:

    • S32K118EVB2Q048 Evaluation Board
  • $105.00 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 10
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
