S32K146EVB-Q144 車載向け汎用評価ボード

S32K146EVB
アクティブ

画像にカーソルを合わせると拡大表示されます。

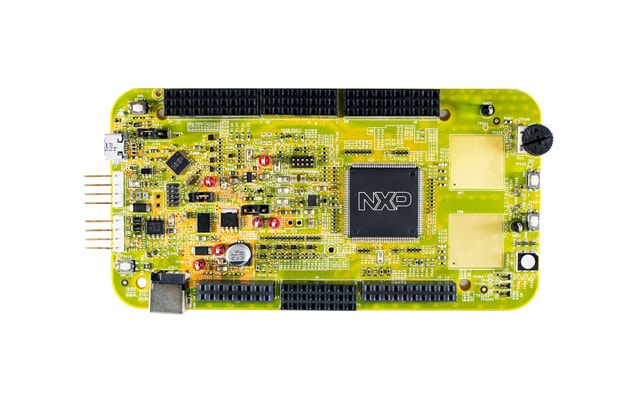

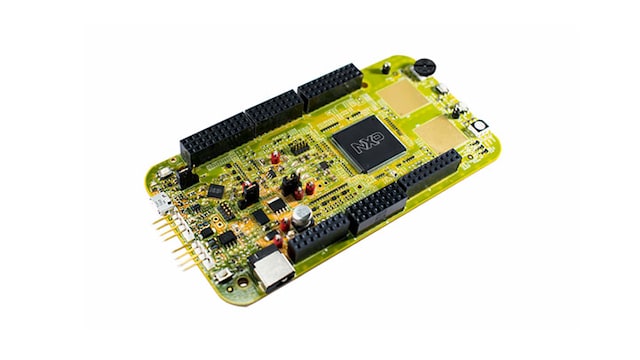

S32K146EVB-Q144は、産業分野および自動車分野の汎用アプリケーションに対応する低コストの評価/開発ボードです。

32ビットArm® Cortex®-M4F S32K14 MCUをベースとしたS32K146EVB-Q144は、Arduino® UNOピン配列互換の標準ベースのフォーム・ファクタを備え、アプリケーションの迅速なプロトタイプ作成やデモのための幅広い拡張ボード・オプションを提供します。

製品詳細

対応製品

インターフェース

オートモーティブLINソリューション

  • TJA1027: LIN 2.2A/SAE J2602 Transceiver

パワーマネージメント

セーフティSBC

  • UJA1169TK: Mini High-Speed CAN System Basis Chip

プロセッサ＆マイクロコントローラ

S32K 車載汎用MCU

  • S32K1: S32K1 車載向け汎用マイクロコントローラ

特長

  • プロトタイピング時のMCU I/Oヘッダ・ピンへのアクセスが容易

サイズと価格

  • 小型フォーム・ファクタ
  • 低コスト

互換性

  • 「シールド」拡張サポートと互換性のあるArduino® UNOピン配置

インターフェース

  • CAN、LIN、UART/SCIに対応するオンボード・コネクティビティ

電源

  • 柔軟な電源オプション：マイクロUSBまたは外部12 V電源

コンポーネント

  • タッチパッド x 2
  • ポテンショメータ x 1
  • RGB LED x 1
  • 押しボタン x 2

購入オプション

S32K146EVB-Q144-Image

クリックして展開

  • S32K146EVB-Q144
    アクティブ

  • S32K146 Evaluation Board for General Purpose.

  • $159.00 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 13
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
