PF5200 Evaluation Board

KITPF5200FRDMEVM

画像にカーソルを合わせると拡大表示されます。

The KITPF5200FRDMEVM provides an integrated platform for evaluating designs based on NXP’s PF5200 dual-channel PMIC. All PF5200 features can be accessed and monitored in a test environment. The kit hardware consists of the KITPF5200FRDMEVM evaluation board, a FRDM-KL25Z microcontroller board and the USB cable required to connect the FRDM-KL25Z to the PC.

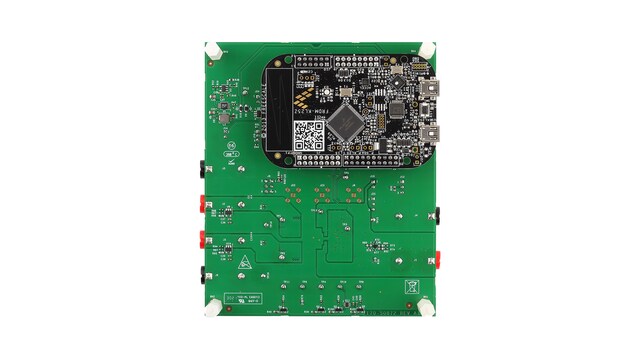

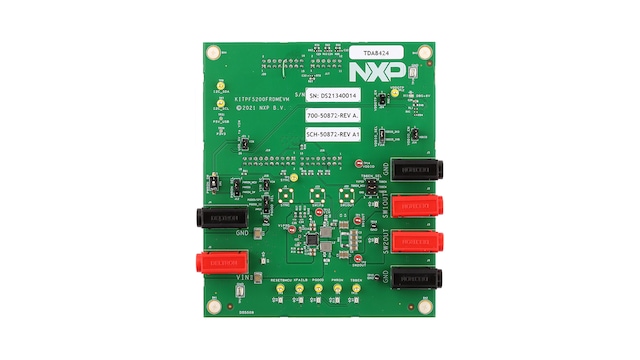

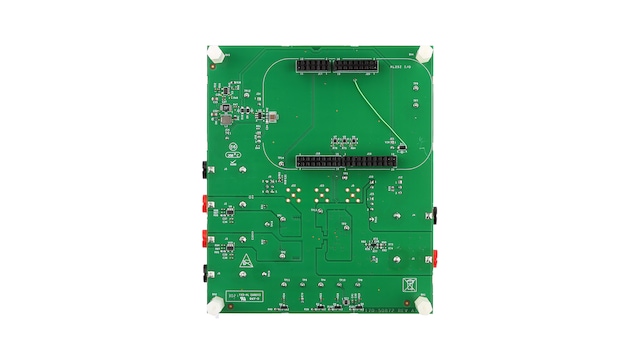

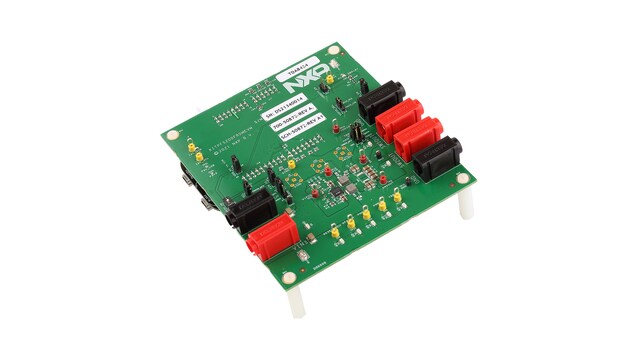

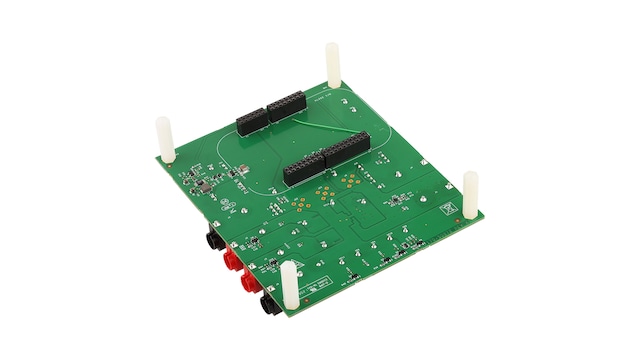

The KITPF5200FRDMEVM evaluation board features an individual PF5200 soldered on board. Connectors, jumpers and switches on the board can be used to configure an evaluation environment that meets specific design requirements. The board also contains LEDs and test points that provide a means of monitoring performance in real time. The FRDM-KL25Z is mounted to Arduino connectors on the bottom of the KITPF5200FRDMEVM board. The role of the FRDM-KL25Z is to manage communication between the KITPF5200FRDMEVM board and the GUI installed on the PC. The FRDM- KL25Z draws power from the USB cable connected to the PC.

製品詳細

対応製品

パワーマネージメント

PMIC

  • PF5200: 車載アプリケーション向けデュアル・チャネルPMIC - 高効率LVBUCK x 2、ASIL Bセーフティ・レベルに適合

Features

System Features

  • USB to I²C communication via the FRDM-KL25Z interface
  • Selectable OTP or TBB operation
  • Onboard I/O regulator with 1.8 V/3.3 V selectable output voltage
  • Advance system monitoring via KL25 MCU ADC

PMIC Features

  • Two high efficiency buck converters
  • Watchdog timer/monitor
  • Monitoring circuit to fit ASIL B safety level
  • One-time programmable device configuration
  • 3.4 MHz I²C communication interface
  • 32-pin FC-QFN package with wettable flank

購入オプション

KITPF5200FRDMEVM-Image

クリックして展開

  • KITPF5200FRDMEVM
    アクティブ

  • PF5200 Evaluation Board.

  • Kit Contains

    • Assembled and tested evaluation board and preprogrammed FRDM-KL25Z microcontroller board in an anti-static bag
    • 3.0 ft USB-STD A to USB-B-mini cable
    • Jumpers mounted on board
    • PF52 part soldered on top
    • Quick Start Guide
  • $218.86 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 5
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
