Getting Started with the S32K118EVB2Q048 Evaluation Board
このドキュメントの内容
-
Plug It In
-
Get Software
-
Create, Build and Debug
サインイン 進行状況を保存するには アカウントをお持ちでない方 アカウントを作成する。
お客様の S32K118-Q048 Evaluation Board for Automotive General Purpose
1. Plug It In
Get Started with S32K118EVB Development Platform
Let's take your S32K118EVB for a test drive. You have the choice of watching a short setup video or following the detailed actions listed below.
Before running this guide to ensure the jumper configuration is correct, check jumpers J109, J110, and J11. The three of them should be configured from 1-2. On the other hand, to make it compliant with the S32K118EVB-Q064, jumpers J109, J110 and J11 must be changed from 1-2 to 2-3 positions.

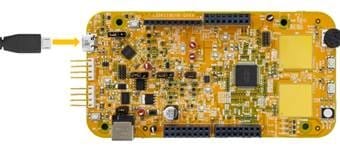

1.1 Attach the USB Cable
Connect your S32K118EVB to a PC and make sure that J107 is
connected in the 3-2 position.

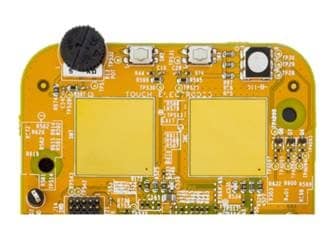

1.2 Run the JumpStart Demo
Your S32K118EVB comes preloaded with the JumpStart code, which toggles the RGB LED. Connect the S32K118EVB to the FreeMASTER tool using the S32K118_EVB_JumpStart_PC file for a complete experience of this code.
2. Get Software
2.1 Install Your Development Environment
S32 Design Studio IDE is a complimentary integrated development environment for automotive and ultra-reliable MCUs that enable editing, compiling, and debugging of your designs.
2.2 Download the JumpStart Code
Download the code and run it to getting familiar with your S32K118EVB using the FreeMASTER tool.
Get S32K118EVB Jumpstart with Freemaster
2.3 Get the Run-Time Debugging Tool
S32K118EVB2Q048 evaluation board performs better when using FreeMASTER tool for run-time debugging.
3. Create, Build and Debug
Learn how to create a new project in S32 Design Studio IDE for power architecture and the basics to create your own code by running an easy example code.
3.1 Create, Build and Debug Your Application
3.2 Explore the Example Code
For your convenience, we integrated example code in to S32 Design Studio for Power Architecture®. Alternatively they can be found in the Quick Start Package. Again, the Software Integration Guide (SWIG) provides step-by-step instructions on how to use.
Design Resources
Board Documents
Chip Documents
Support
Forums
Connect with other engineers and get expert advice on designing with the S32K144EVB on one of our community sites.
