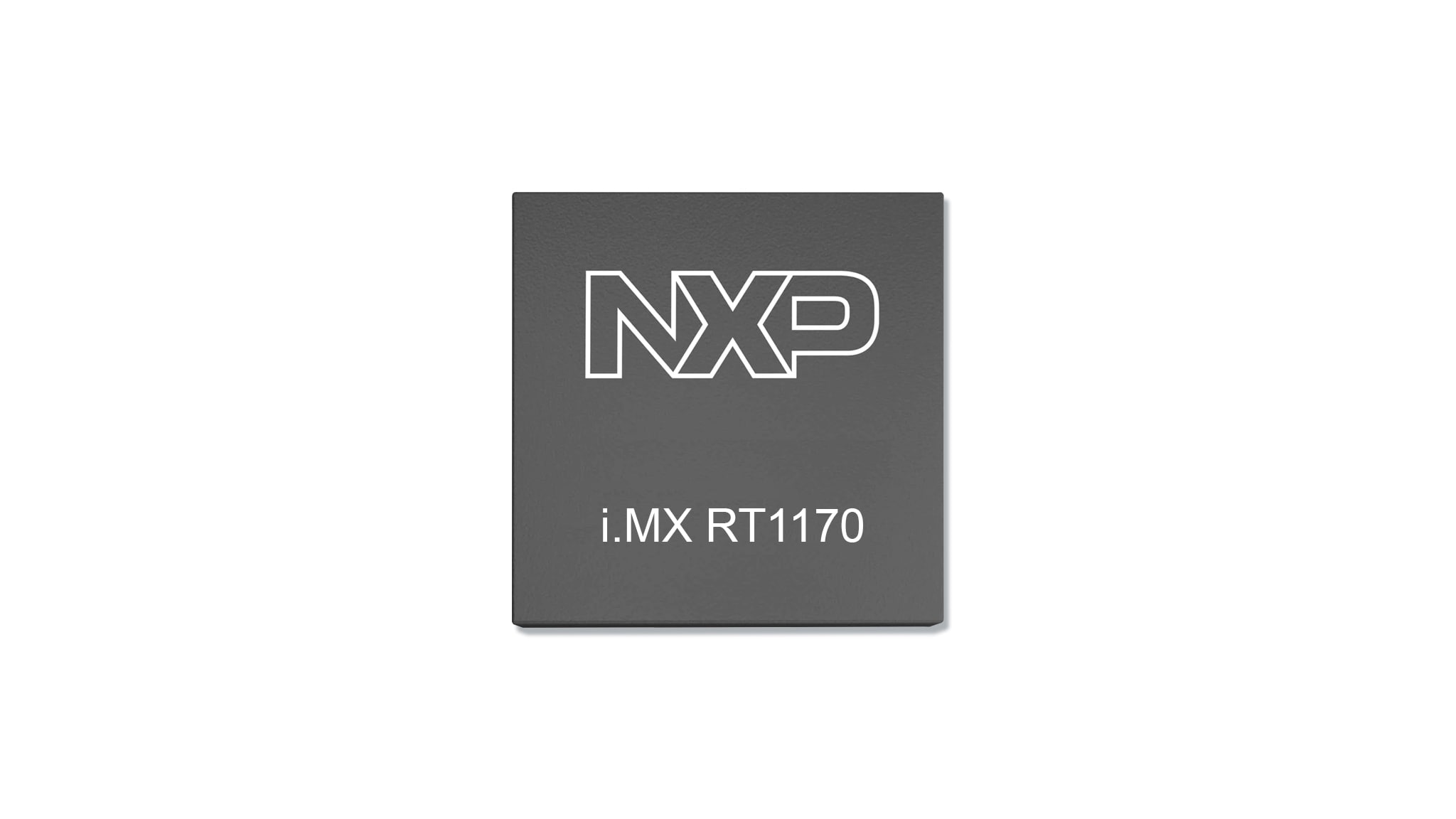

i.MX RT1170クロスオーバーMCUは、Arm® Cortex®-M7コアとArm® Cortex®-M4を搭載したデュアルコア・デバイスであり、車載およびインダストリアル&IoTアプリケーション向けにリアルタイム・マイクロコントローラ (MCU) の性能と高集積を実現します。
i.MX RT1170のCM7は最大1 GHz、CM4は最大400 MHzで動作し、2 MBのオンチップRAMを備えています。このリアルタイム・マイクロコントローラ (MCU) ファミリは、さまざまなメモリ・インターフェースに加え、イーサネット(x 3、最大1 Gbps)、TSN/AVB、UART、SPI、I²C、USB、CAN-FD (x 3) などの幅広いコネクティビティ・インターフェースを提供します。i.MX RT1170は、セキュア・ブートや暗号化エンジンなどの高度な組込みセキュリティを備えています。
i.MX RT1170ファミリは、SDK、各種IDE、セキュア・プロビジョニング、構成ツールを含むMCUXpressoエコシステムによってサポートされ、迅速な開発を可能にします。
EdgeLock Assuranceプログラムに含まれているi.MX RT1170クロスオーバーMCUは、業界標準を満たせるように、NXPのセキュリティ・バイ・デザイン手法に従って設計されています。
i.MX RT1050 Arm® Cortex®-M7コア搭載クロスオーバーMCU
i.MX RT1060:Arm® Cortex®-M7搭載クロスオーバーMCU
1-10 の 13 結果
マッチしていない 0 NRND
パーツ | 注文 | コンピュータ支援設計 モデル | 状況 | 標準価格 | コア・タイプ | 動作周波数[最大](MHz) | SRAM (kB) | 対応する外部メモリ | GPU 2D / GPU 3D | Display Features | Camera Interfaces | Serial Communication | CAN FD | イーサネット | USB Controllers | セキュリティ | PWM [Number, bits] | ADC [Number, bits] | 電源電圧 [最小 - 最大] (V) | PWM | Junction Temperature (Min to Max) (℃) | パッケージタイプ | Package Pitch (mm) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
アクティブ | 1K @ US$8.25 | 1 x Arm Cortex-M7 | 800 | 2048 | FlexSPI, NOR FLASH, OctalSPI, SDRAM, SLC NAND FLASH | — | — | — | 12 x UART, 6 x I²C, 6 x SPI | 3 | 2 | 2 | — | 48 x 16 | 2 x 12 | 3 to 3.6 | 48 | -40 to 125 | LFBGA289 | 0.8 | |||
アクティブ | 10K @ US$7.16 | 1 x Arm Cortex-M7 | 800 | 2048 | FlexSPI, NOR FLASH, OctalSPI, SDRAM, SLC NAND FLASH | — | — | — | 12 x UART, 6 x I²C, 6 x SPI | 3 | 2 | 2 | — | 48 x 16 | 2 x 12 | 3 to 3.6 | 48 | -40 to 105 | LFBGA289 | 0.8 | |||
アクティブ | 10K @ US$6.69 | 1 x Arm Cortex-M7 | 1000 | 2048 | FlexSPI, NOR FLASH, OctalSPI, SDRAM | — | — | — | 12 x UART, 6 x I²C, 6 x SPI | 3 | 2 | 2 | AES-D, CA, CRC, FAC, HAB, SJC, SNVS, TRNG | 48 x 16 | 2 x 12 | 3 to 3.6 | 48 | 0 to 95 | LFBGA289 | 0.8 | |||
アクティブ | 1K @ US$9.16 | 1 x Arm Cortex-M7 | 800 | 2048 | FlexSPI, NOR FLASH, OctalSPI, SDRAM, SLC NAND FLASH | GPU 2D | MIPI-DSI, parallel RGB LCD controller | 1 x MIPI-CSI, 1 x parallel CSI | 12 x UART, 6 x I²C, 6 x SPI | 3 | 2 | 2 | — | 48 x 16 | 2 x 12 | 3 to 3.6 | 48 | -40 to 125 | LFBGA289 | 0.8 | |||
アクティブ | 10K @ US$7.73 | 1 x Arm Cortex-M7 | 800 | 2048 | FlexSPI, NOR FLASH, OctalSPI, SDRAM, SLC NAND FLASH | GPU 2D | MIPI-DSI, parallel RGB LCD controller | 1 x MIPI-CSI, 1 x parallel CSI | 12 x UART, 6 x I²C, 6 x SPI | 3 | 2 | 2 | — | 48 x 16 | 2 x 12 | 3 to 3.6 | 48 | -40 to 105 | LFBGA289 | 0.8 | |||
アクティブ | 10K @ US$7.16 | 1 x Arm Cortex-M7 | 1000 | 2048 | FlexSPI, NOR FLASH, OctalSPI, SDRAM, SLC NAND FLASH | GPU 2D | MIPI-DSI, parallel RGB LCD controller | 1 x MIPI-CSI, 1 x parallel CSI | 12 x UART, 6 x I²C, 6 x SPI | 3 | 2 | 2 | — | 48 x 16 | 2 x 12 | 3 to 3.6 | 48 | 0 to 95 | LFBGA289 | 0.8 | |||
アクティブ | 10K @ US$8.53 | 1 x Arm Cortex-M4, 1 x Arm Cortex-M7 | 400, 800 | 2048 | FlexSPI, NOR FLASH, OctalSPI, SDRAM, SLC NAND FLASH | GPU 2D | MIPI-DSI, parallel RGB LCD controller | 1 x MIPI-CSI, 1 x parallel CSI | 12 x UART, 6 x I²C, 6 x SPI | 3 | 2 | 2 | — | 48 x 16 | 2 x 12 | 3 to 3.6 | 48 | -40 to 105 | LFBGA289 | 0.8 | |||
アクティブ | 1K @ US$9.31 | 1 x Arm Cortex-M4, 1 x Arm Cortex-M7 | 400, 800 | 2048 | FlexSPI, NOR FLASH, OctalSPI, SDRAM, SLC NAND FLASH | — | — | — | 12 x UART, 6 x I²C, 6 x SPI | 3 | 2 | 2 | — | 48 x 16 | 2 x 12 | 3 to 3.6 | 48 | -40 to 125 | LFBGA289 | 0.8 | |||
アクティブ | 10K @ US$8.02 | 1 x Arm Cortex-M4, 1 x Arm Cortex-M7 | 400, 800 | 2048 | FlexSPI, NOR FLASH, OctalSPI, SDRAM, SLC NAND FLASH | — | — | — | 12 x UART, 6 x I²C, 6 x SPI | 3 | 2 | 2 | — | 48 x 16 | 2 x 12 | 3 to 3.6 | 48 | -40 to 105 | LFBGA289 | 0.8 | |||
アクティブ | 10K @ US$7.44 | 1 x Arm Cortex-M4, 1 x Arm Cortex-M7 | 400, 1000 | 2048 | FlexSPI, NOR FLASH, OctalSPI, SDRAM, SLC NAND FLASH | — | — | — | 12 x UART, 6 x I²C, 6 x SPI | 3 | 2 | 2 | — | 48 x 16 | 2 x 12 | 3 to 3.6 | 48 | 0 to 95 | LFBGA289 | 0.8 |
