ASL45XASLX41 Evaluation Board

ASL45XASLX41 アクティブ

画像にカーソルを合わせると拡大表示されます。

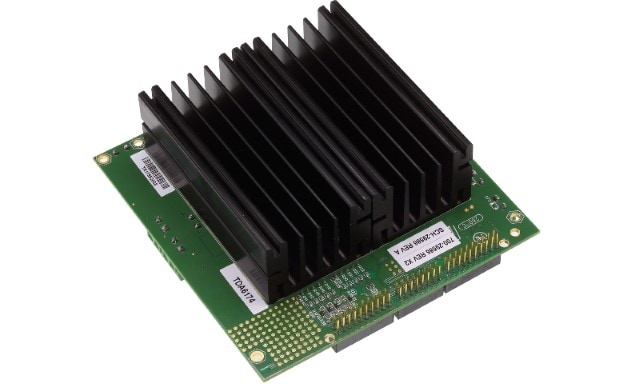

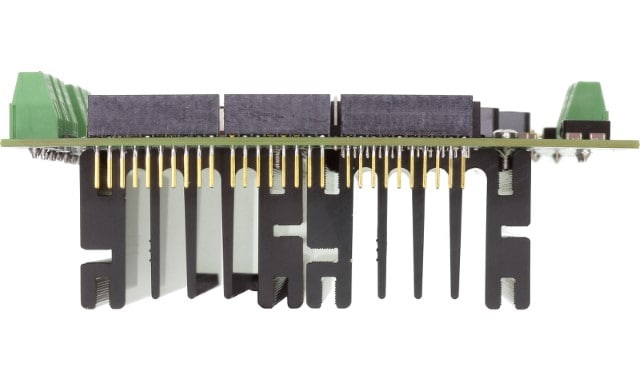

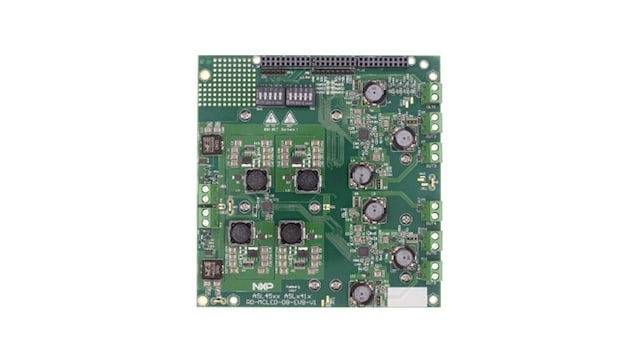

The ASLx500SHN and ASLx41xSHN Evaluation Board (EVB) features the ASL4500SHN, a highly integrated and flexible four-phase DC-to-DC boost converter IC and two ASL3416SHN, a three-channel buck mode LED driver IC delivering constant average DC current. The kit is designed to drive six LED strings with 150 mA to 1.6 A and 2 V to 60 V LED string voltage. In a default application a microprocessor unit (MCU) controls the devices through a serial peripheral interface (SPI).

対応製品

パワーマネージメント

車載用照明LEDドライバIC

  • ASL341ySHN: Three-Channel Automotive LED Buck Driver
  • ASL241ySHN: Two-Channel Automotive LED Buck Driver
  • ASL250ySHN: Two-Phase Automotive LED Boost Driver with a Limp Home Mode
  • ASL4500SHN: Four-Phase Automotive LED Boost Driver
  • ASL150ySHN: Single-Phase Automotive LED Boost Driver with Limp Home Mode

プロセッサ＆マイクロコントローラ

S32K 車載汎用MCU

  • S32K1: S32K1 車載向け汎用マイクロコントローラ

Features

General Specifications

  • Control of ASL4500SHN boost converters
  • Control of two ASL3416SHN buck converters
  • Option to control any NXP ASL boost or buck converter

Connectivity

  • Interface connector to the S32K144EVB

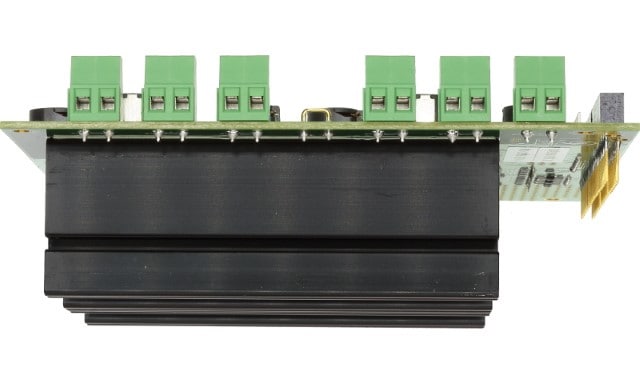

  • Connectors for 2 input voltages and 6 LED outputs

User Components

  • Status LEDs to report the status of the connected supplies

購入オプション

ASL45XASLX41-Image

クリックして展開

  • ASL45XASLX41
    アクティブ

  • ASL45XASLX41 Evaluation Board.

  • Only the ASL45XASLX41 board

    For operation of the ASL45XASLX41 KIT, an S32K board is recommended

  • $405.88 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 9
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
N true 0 TSPASL45XASLX41ja 9 データ・シート Data Sheet t520 9 ja ja ja データ・シート Data Sheet 9 1 6 English ASL2416SHN Enhanced two channel LED buck driver 1510841700791722143939 TSP 1.3 MB None None documents None 1510841700791722143939 /docs/en/data-sheet/ASL2416SHN.pdf 1289720 /docs/en/data-sheet/ASL2416SHN.pdf ASL2416SHN documents N N 2017-11-16 ASL2416SHN, Enhanced two-channel LED buck driver- Data Sheet /docs/en/data-sheet/ASL2416SHN.pdf /docs/en/data-sheet/ASL2416SHN.pdf Data Sheet N 980000996212993340 2022-12-16 pdf N en Sep 16, 2019 980000996212993340 Data Sheet Y N ASL2416SHN, Enhanced two-channel LED buck driver- Data Sheet 2 4 English ASL2417SHN Enhanced two channel LED buck driver with limp-home 1510841923300734809133 TSP 1.4 MB None None documents None 1510841923300734809133 /docs/en/data-sheet/ASL2417SHN.pdf 1413377 /docs/en/data-sheet/ASL2417SHN.pdf ASL2417SHN documents N N 2017-11-16 ASL2417SHN, Enhanced two-channel LED buck driver with limp-home - Data Sheet /docs/en/data-sheet/ASL2417SHN.pdf /docs/en/data-sheet/ASL2417SHN.pdf Data Sheet N 980000996212993340 2022-12-16 pdf N en Sep 16, 2019 980000996212993340 Data Sheet Y N ASL2417SHN, Enhanced two-channel LED buck driver with limp-home - Data Sheet 3 6 Chinese ASL3416SHN Three-channel Automotive LED Buck Driver 1510842085282728708985zh TSP 1.3 MB None None documents None 1510842085282728708985 /docs/zh/data-sheet/ASL3416SHN.pdf 1326232 /docs/zh/data-sheet/ASL3416SHN.pdf ASL3416SHN documents N N 2017-11-16 ASL3416SHN, Three-channel Automotive LED Buck Driver - Data Sheet /docs/zh/data-sheet/ASL3416SHN.pdf /docs/zh/data-sheet/ASL3416SHN.pdf Data Sheet N 980000996212993340 2022-12-16 zh Sep 16, 2019 980000996212993340 Data Sheet Y N ASL3416SHN 增强型三通道LED降压驱动器 6 English ASL3416SHN Three-channel Automotive LED Buck Driver 1510842085282728708985 TSP 1.3 MB None None documents None 1510842085282728708985 /docs/en/data-sheet/ASL3416SHN.pdf 1326232 /docs/en/data-sheet/ASL3416SHN.pdf ASL3416SHN documents N N 2017-11-16 ASL3416SHN, Three-channel Automotive LED Buck Driver - Data Sheet /docs/en/data-sheet/ASL3416SHN.pdf /docs/en/data-sheet/ASL3416SHN.pdf Data Sheet N 980000996212993340 2022-12-16 pdf N en Sep 16, 2019 980000996212993340 Data Sheet Y N ASL3416SHN, Three-channel Automotive LED Buck Driver - Data Sheet 4 4 English ASL3417SHN Enhanced three channel LED buck driver with limp-home 1510842157615704673219 TSP 1.4 MB None None documents None 1510842157615704673219 /docs/en/data-sheet/ASL3417SHN.pdf 1429937 /docs/en/data-sheet/ASL3417SHN.pdf ASL3417SHN documents N N 2017-11-16 ASL3417SHN, Enhanced three channel LED buck driver with limp-home - Data Sheet /docs/en/data-sheet/ASL3417SHN.pdf /docs/en/data-sheet/ASL3417SHN.pdf Data Sheet N 980000996212993340 2022-12-16 pdf N en Sep 16, 2019 980000996212993340 Data Sheet Y N ASL3417SHN, Enhanced three channel LED buck driver with limp-home - Data Sheet 5 1 English ASL1507SHN; ASL2507SHN, Single-phase and two-phase boost converter with limp-home mode – Data Sheet 1530906916358720024685 TSP 558.6 KB None None documents None 1530906916358720024685 /docs/en/data-sheet/ASL1507_ASL2507.pdf 558586 /docs/en/data-sheet/ASL1507_ASL2507.pdf ASL1507_ASL2507 documents N N 2018-07-06 ASL1507SHN; ASL2507SHN, Single-phase and two-phase boost converter with limp-home mode – Data Sheet /docs/en/data-sheet/ASL1507_ASL2507.pdf /docs/en/data-sheet/ASL1507_ASL2507.pdf Data Sheet N 980000996212993340 2022-12-16 pdf N en Jul 6, 2018 980000996212993340 Data Sheet Y N ASL1507SHN; ASL2507SHN, Single-phase and two-phase boost converter with limp-home mode – Data Sheet 6 2.0 Chinese 1516323134462716761954zh TSP 1.4 MB None None documents None 1516323134462716761954 /docs/zh/data-sheet/ASL4501SHN.pdf 1366296 /docs/zh/data-sheet/ASL4501SHN.pdf ASL4501SHN documents N N 2018-01-18 ASL4501SHN, Four-phase boost converter - Data Sheet /docs/zh/data-sheet/ASL4501SHN.pdf /docs/zh/data-sheet/ASL4501SHN.pdf Data Sheet N 980000996212993340 2022-12-16 zh Jan 18, 2018 980000996212993340 Data Sheet Y N ASL4501SHN 四相升压转换器 2.0 English 1516323134462716761954 TSP 1.4 MB None None documents None 1516323134462716761954 /docs/en/data-sheet/ASL4501SHN.pdf 1366296 /docs/en/data-sheet/ASL4501SHN.pdf ASL4501SHN documents N N 2018-01-18 ASL4501SHN, Four-phase boost converter - Data Sheet /docs/en/data-sheet/ASL4501SHN.pdf /docs/en/data-sheet/ASL4501SHN.pdf Data Sheet N 980000996212993340 2022-12-16 pdf N en Jan 18, 2018 980000996212993340 Data Sheet Y N ASL4501SHN, Four-phase boost converter - Data Sheet 7 6.0 English ASL4500SHN Four-phase boost converter datasheet 1510842233523731376937 TSP 1.4 MB None None documents None 1510842233523731376937 /docs/en/data-sheet/ASL4500SHN.pdf 1373130 /docs/en/data-sheet/ASL4500SHN.pdf ASL4500SHN documents N N 2017-11-16 ASL4500SHN, Four-phase boost converter - Data Sheet /docs/en/data-sheet/ASL4500SHN.pdf /docs/en/data-sheet/ASL4500SHN.pdf Data Sheet N 980000996212993340 2022-12-07 pdf N en Nov 16, 2017 980000996212993340 Data Sheet Y N ASL4500SHN, Four-phase boost converter - Data Sheet 8 3.0 English ASL2500SHN Two phase boost converter 1510842017539695757256 TSP 1.4 MB None None documents None 1510842017539695757256 /docs/en/data-sheet/ASL2500SHN.pdf 1395494 /docs/en/data-sheet/ASL2500SHN.pdf ASL2500SHN documents N N 2017-11-16 ASL2500SHN, Two phase boost converter - Data Sheet /docs/en/data-sheet/ASL2500SHN.pdf /docs/en/data-sheet/ASL2500SHN.pdf Data Sheet N 980000996212993340 2022-12-16 pdf N en Nov 16, 2017 980000996212993340 Data Sheet Y N ASL2500SHN, Two phase boost converter - Data Sheet 9 4.0 English ASL1500SHN Single phase boost converter 1510841619661695519510 TSP 1.4 MB None None documents None 1510841619661695519510 /docs/en/data-sheet/ASL1500SHN.pdf 1363065 /docs/en/data-sheet/ASL1500SHN.pdf ASL1500SHN documents N N 2017-11-16 ASL1500SHN, Single phase boost converter - Data Sheet /docs/en/data-sheet/ASL1500SHN.pdf /docs/en/data-sheet/ASL1500SHN.pdf Data Sheet N 980000996212993340 2022-12-16 pdf N en Nov 16, 2017 980000996212993340 Data Sheet Y N ASL1500SHN, Single phase boost converter - Data Sheet false 0 ASL45XASLX41 downloads ja true 0 Y TSP Y Y データ・シート 9 /docs/en/data-sheet/ASL2416SHN.pdf 2017-11-16 1510841700791722143939 TSP 1 Sep 16, 2019 Data Sheet ASL2416SHN Enhanced two channel LED buck driver None /docs/en/data-sheet/ASL2416SHN.pdf English documents 1289720 None 980000996212993340 2022-12-16 N /docs/en/data-sheet/ASL2416SHN.pdf ASL2416SHN, Enhanced two-channel LED buck driver- Data Sheet /docs/en/data-sheet/ASL2416SHN.pdf documents 980000996212993340 Data Sheet N en None Y pdf 6 N N ASL2416SHN, Enhanced two-channel LED buck driver- Data Sheet 1.3 MB ASL2416SHN N 1510841700791722143939 /docs/en/data-sheet/ASL2417SHN.pdf 2017-11-16 1510841923300734809133 TSP 2 Sep 16, 2019 Data Sheet ASL2417SHN Enhanced two channel LED buck driver with limp-home None /docs/en/data-sheet/ASL2417SHN.pdf English documents 1413377 None 980000996212993340 2022-12-16 N /docs/en/data-sheet/ASL2417SHN.pdf ASL2417SHN, Enhanced two-channel LED buck driver with limp-home - Data Sheet /docs/en/data-sheet/ASL2417SHN.pdf documents 980000996212993340 Data Sheet N en None Y pdf 4 N N ASL2417SHN, Enhanced two-channel LED buck driver with limp-home - Data Sheet 1.4 MB ASL2417SHN N 1510841923300734809133 /docs/en/data-sheet/ASL3416SHN.pdf 2017-11-16 1510842085282728708985 TSP 3 Sep 16, 2019 Data Sheet ASL3416SHN Three-channel Automotive LED Buck Driver None /docs/en/data-sheet/ASL3416SHN.pdf English documents 1326232 None 980000996212993340 2022-12-16 N /docs/en/data-sheet/ASL3416SHN.pdf ASL3416SHN, Three-channel Automotive LED Buck Driver - Data Sheet /docs/en/data-sheet/ASL3416SHN.pdf documents 980000996212993340 Data Sheet N en None Y pdf 6 N N ASL3416SHN, Three-channel Automotive LED Buck Driver - Data Sheet 1.3 MB ASL3416SHN N 1510842085282728708985 /docs/en/data-sheet/ASL3417SHN.pdf 2017-11-16 1510842157615704673219 TSP 4 Sep 16, 2019 Data Sheet ASL3417SHN Enhanced three channel LED buck driver with limp-home None /docs/en/data-sheet/ASL3417SHN.pdf English documents 1429937 None 980000996212993340 2022-12-16 N /docs/en/data-sheet/ASL3417SHN.pdf ASL3417SHN, Enhanced three channel LED buck driver with limp-home - Data Sheet /docs/en/data-sheet/ASL3417SHN.pdf documents 980000996212993340 Data Sheet N en None Y pdf 4 N N ASL3417SHN, Enhanced three channel LED buck driver with limp-home - Data Sheet 1.4 MB ASL3417SHN N 1510842157615704673219 /docs/en/data-sheet/ASL1507_ASL2507.pdf 2018-07-06 1530906916358720024685 TSP 5 Jul 6, 2018 Data Sheet ASL1507SHN; ASL2507SHN, Single-phase and two-phase boost converter with limp-home mode – Data Sheet None /docs/en/data-sheet/ASL1507_ASL2507.pdf English documents 558586 None 980000996212993340 2022-12-16 N /docs/en/data-sheet/ASL1507_ASL2507.pdf ASL1507SHN; ASL2507SHN, Single-phase and two-phase boost converter with limp-home mode – Data Sheet /docs/en/data-sheet/ASL1507_ASL2507.pdf documents 980000996212993340 Data Sheet N en None Y pdf 1 N N ASL1507SHN; ASL2507SHN, Single-phase and two-phase boost converter with limp-home mode – Data Sheet 558.6 KB ASL1507_ASL2507 N 1530906916358720024685 /docs/en/data-sheet/ASL4501SHN.pdf 2018-01-18 1516323134462716761954 TSP 6 Jan 18, 2018 Data Sheet None /docs/en/data-sheet/ASL4501SHN.pdf English documents 1366296 None 980000996212993340 2022-12-16 N /docs/en/data-sheet/ASL4501SHN.pdf ASL4501SHN, Four-phase boost converter - Data Sheet /docs/en/data-sheet/ASL4501SHN.pdf documents 980000996212993340 Data Sheet N en None Y pdf 2.0 N N ASL4501SHN, Four-phase boost converter - Data Sheet 1.4 MB ASL4501SHN N 1516323134462716761954 /docs/en/data-sheet/ASL4500SHN.pdf 2017-11-16 1510842233523731376937 TSP 7 Nov 16, 2017 Data Sheet ASL4500SHN Four-phase boost converter datasheet None /docs/en/data-sheet/ASL4500SHN.pdf English documents 1373130 None 980000996212993340 2022-12-07 N /docs/en/data-sheet/ASL4500SHN.pdf ASL4500SHN, Four-phase boost converter - Data Sheet /docs/en/data-sheet/ASL4500SHN.pdf documents 980000996212993340 Data Sheet N en None Y pdf 6.0 N N ASL4500SHN, Four-phase boost converter - Data Sheet 1.4 MB ASL4500SHN N 1510842233523731376937 /docs/en/data-sheet/ASL2500SHN.pdf 2017-11-16 1510842017539695757256 TSP 8 Nov 16, 2017 Data Sheet ASL2500SHN Two phase boost converter None /docs/en/data-sheet/ASL2500SHN.pdf English documents 1395494 None 980000996212993340 2022-12-16 N /docs/en/data-sheet/ASL2500SHN.pdf ASL2500SHN, Two phase boost converter - Data Sheet /docs/en/data-sheet/ASL2500SHN.pdf documents 980000996212993340 Data Sheet N en None Y pdf 3.0 N N ASL2500SHN, Two phase boost converter - Data Sheet 1.4 MB ASL2500SHN N 1510842017539695757256 /docs/en/data-sheet/ASL1500SHN.pdf 2017-11-16 1510841619661695519510 TSP 9 Nov 16, 2017 Data Sheet ASL1500SHN Single phase boost converter None /docs/en/data-sheet/ASL1500SHN.pdf English documents 1363065 None 980000996212993340 2022-12-16 N /docs/en/data-sheet/ASL1500SHN.pdf ASL1500SHN, Single phase boost converter - Data Sheet /docs/en/data-sheet/ASL1500SHN.pdf documents 980000996212993340 Data Sheet N en None Y pdf 4.0 N N ASL1500SHN, Single phase boost converter - Data Sheet 1.4 MB ASL1500SHN N 1510841619661695519510 true Y Tools
