Matrix LED Controller ASL5015SHN Evaluation / Development Board

ASL5015EVBMST

画像にカーソルを合わせると拡大表示されます。

ASL5015EVBMST features the ASL5015SHN. The ASL5xxxyHz family is a fully-featured and flexible Matrix LED Controller (MLC). It provides a cost-effective design solution, specifically targeting advanced automotive exterior lighting applications. Smart PWM part numbers determine the PWM dimming duty cycle from information stored inside the MLC in the form of dimming polynomial curve coefficients. These coefficients are programmable by the customer according to the dimming profile they would like to see. The MLC uses these polynomial coefficients to calculate the PWM duty cycle to 12-bit resolution.

対応製品

パワーマネージメント

車載用照明LEDドライバIC

  • ASL5XXXYHZ: Smart Matrix LED Controller for Automotive Lighting

セーフティSBC

  • UJA1163TK: Mini High-Speed CAN System Basis Chip with Standby Mode

Features

MLC Key Specifications

  • 12 integrated switches in 4 floating blocks
  • 1.5 A maximum current per switch
  • 12 bit resolution
  • PWM Automated phase shifting to avoid large peak current during switching
  • Single LED open/short detection
  • Direct NTC and ID resistor input
  • CAN interface (FD available)
  • Integrated oscillator QM (B) support

購入オプション

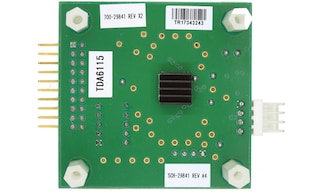

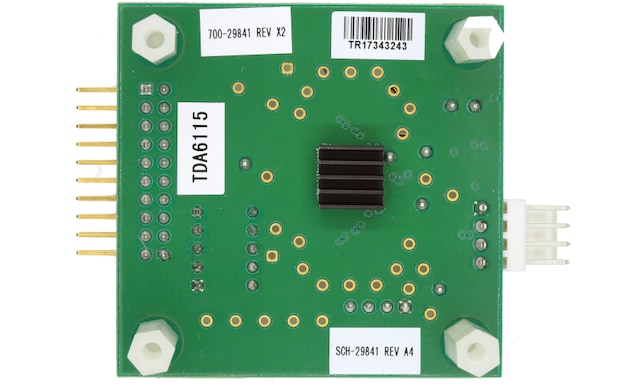

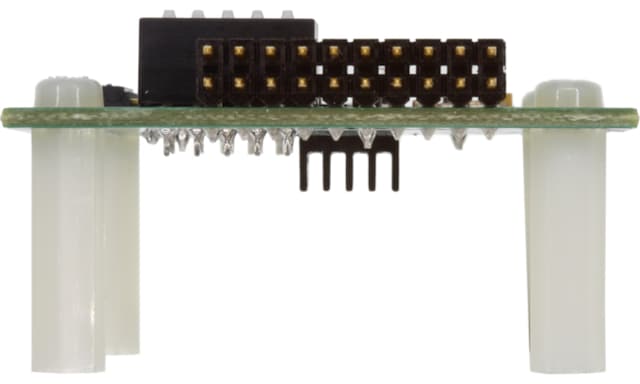

ASL5015EVBMST-Image

クリックして展開

  • ASL5015EVBMST
    アクティブ

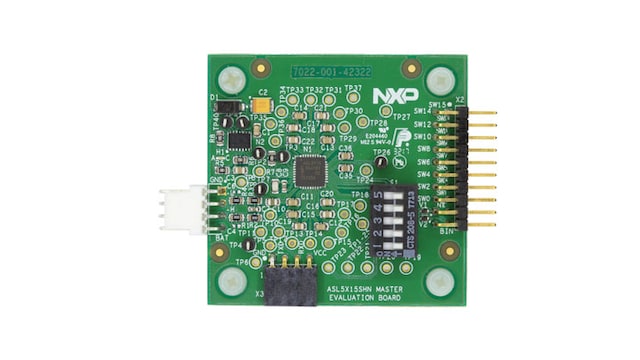

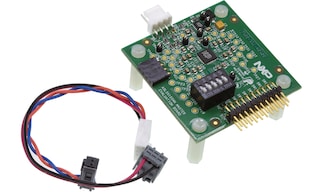

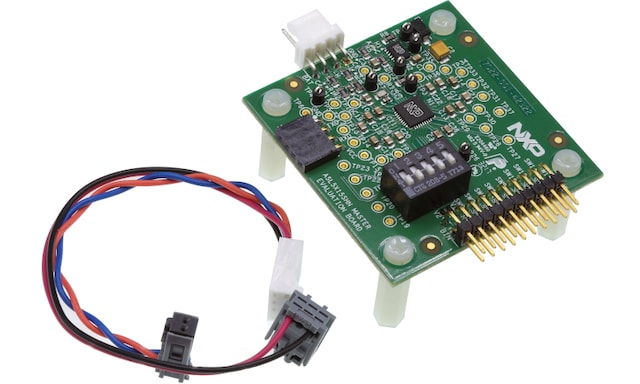

  • Matrix LED Controller ASL5015SHN Evaluation / Development Board.

    • Cable harness for power supply and CAN bus

    Contact you local sales or distributor for board availability

  • の数量に対して 1
代理店からの注文
