Config Tools for i.MX Applications Processors
The Config Tools for i.MX is a suite of evaluation and configuration tools that help users from initial evaluation to production software development. Config Tools for i.MX is an easy-to-use way to configure the pins and DDR of the i.MX processor devices.
The Config Tools for i.MX is installed as a desktop tool which then loads additional device information through a network connection, but does otherwise not need internet connection. It does not require a project setup, as all the settings are stored in text and generated source files, which then can be easily stored in a version control system or exchanged with other users.

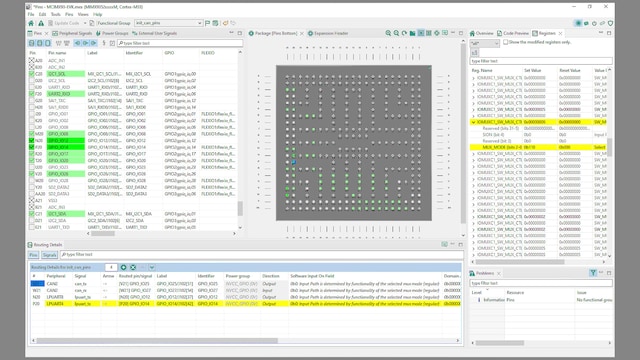

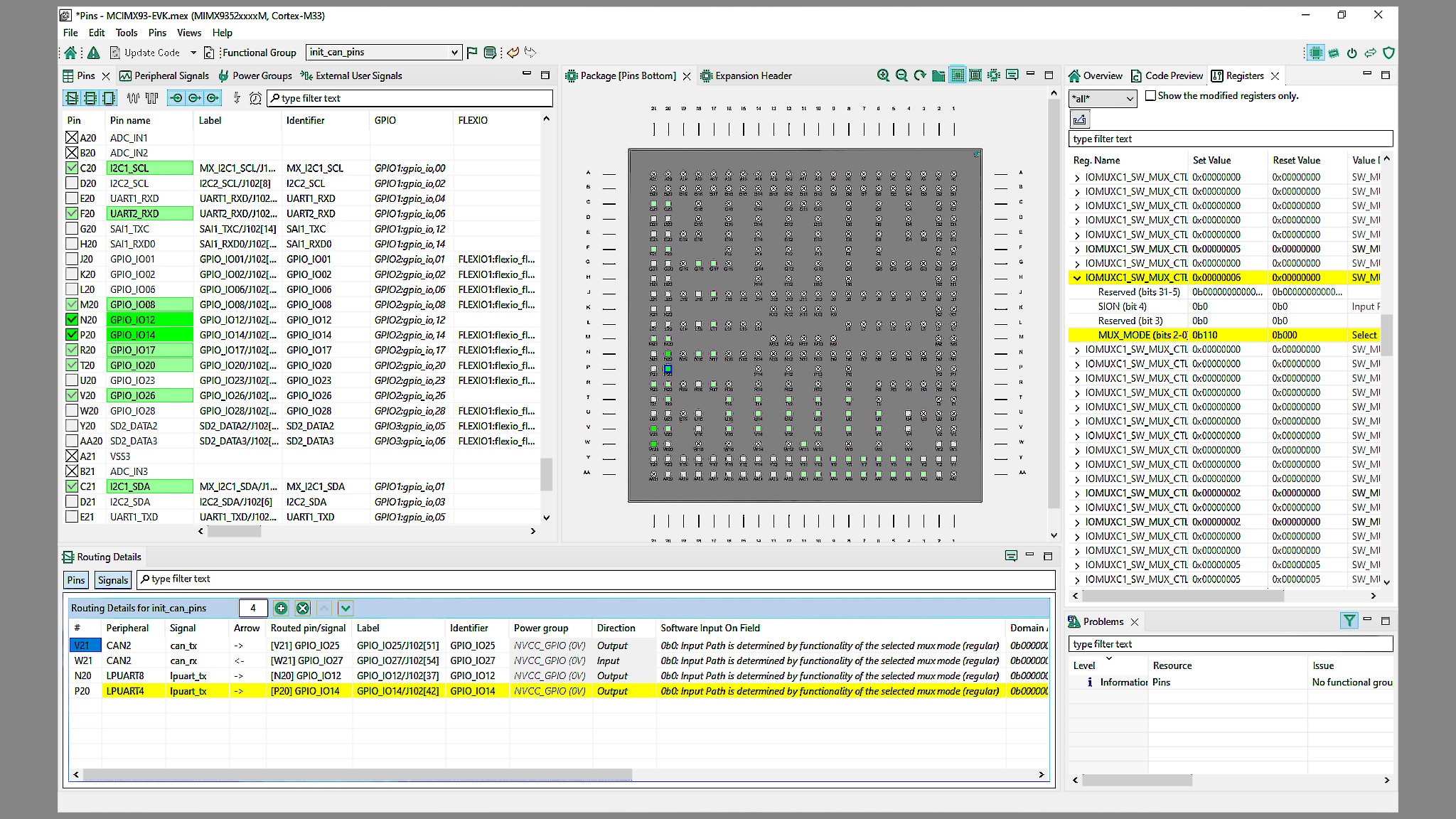

The Pins Tool makes pin configuration easier and faster with an intuitive and easy user interface, which then generates normal C code that can then be used in any C and C++ application. The Pins Tool configures pin signals from multiplexing (muxing) to the electrical properties of pins, and it also creates Device Tree Snippets Include (.dtsi) files and reports in CSV format.

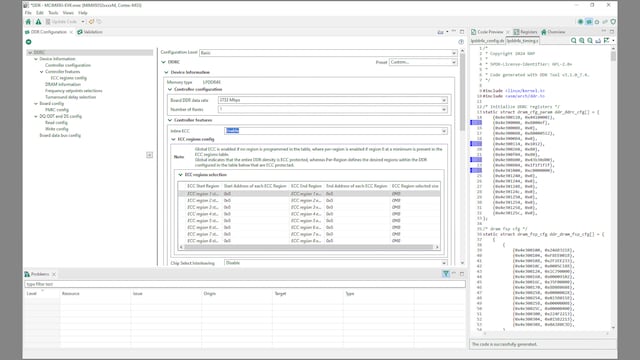

The DDR tool provides two main functionalities: configuration and validation. The DDR configuration provides a user-friendly graphical interface to configure the DDR controller and the DDR PHY. It can be used for tweaking some of the configuration parameters when you want to use different memory modules than the ones received with the board or when you want to optimize the configuration. DDR validation provides different scenarios to verify the DDR performance, by downloading a test image to the processor’s internal RAM through a USB connection. The result is sent to the DDR tool via the UART. DDR validation can help verify DDR stability on the board in a non-OS environment.
ソフトウェア詳細
Features
Pins Tool
- Muxing and pin configuration with consistency checking, output is documented and easy to understand source code
- Mostly connected: On-Demand device data download
- Integrates with any compiler and IDE
- Easy-to-use device configuration with graphical processor package view
- CSV report and device tree file
DDR Tool
- Support for i.MX 8M and i.MX93 families
- Configuration: Simplified UI for device configuration
- Advanced board configuration options
- Stressing: Stress tests with overnight option
- Optimization: Sweep ODT configuration and optimization of Vref for DQ and CA

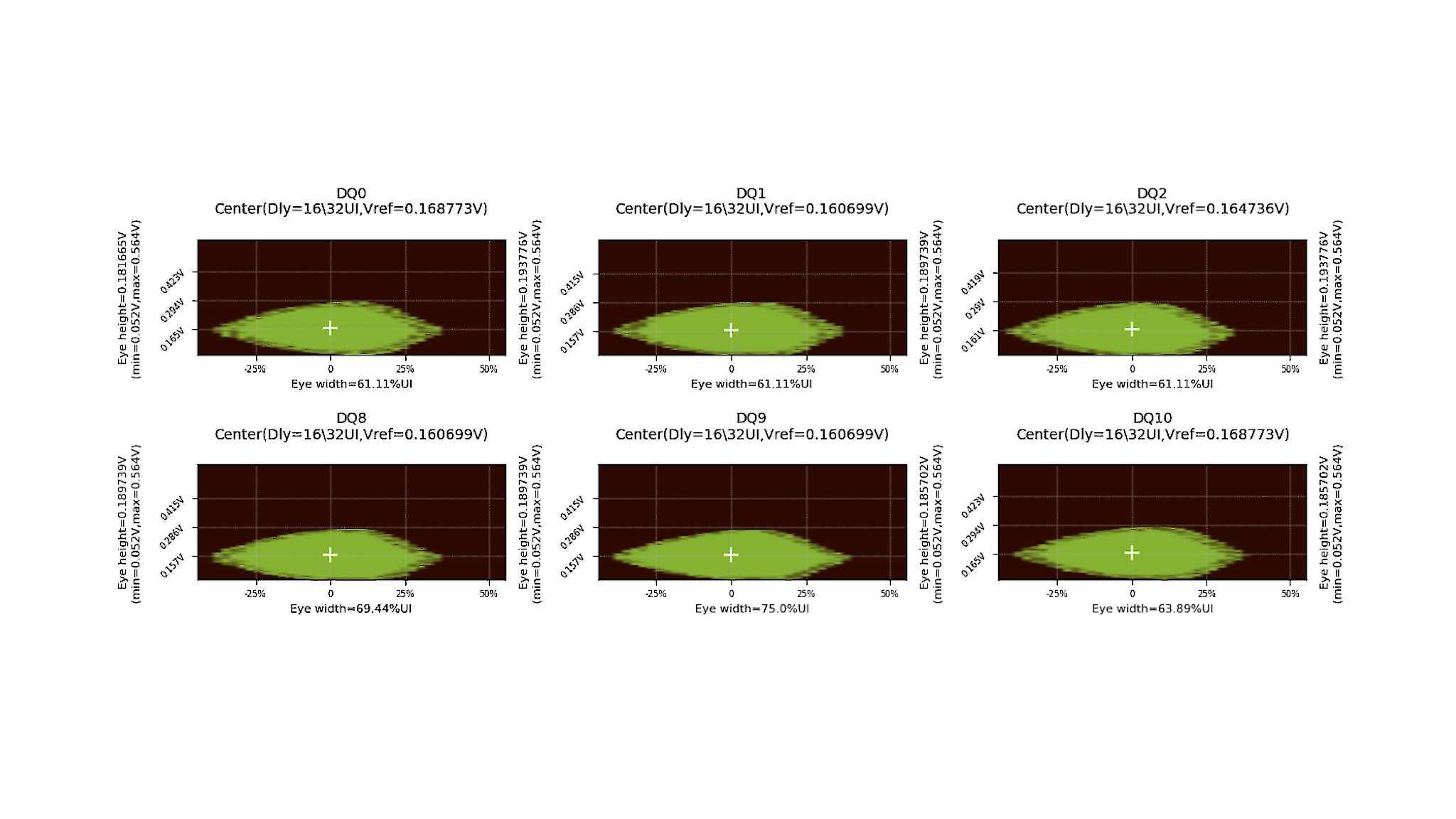

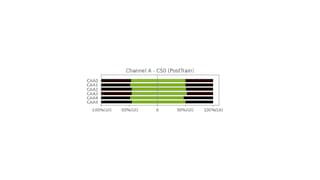

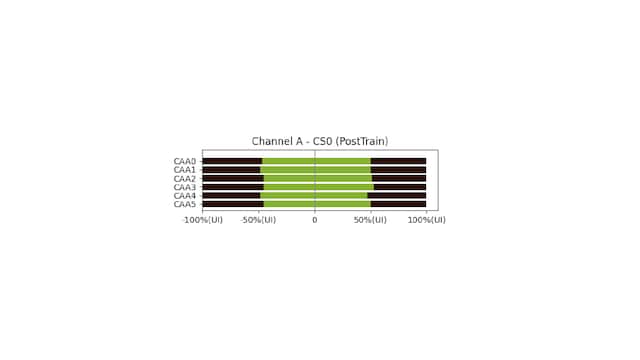

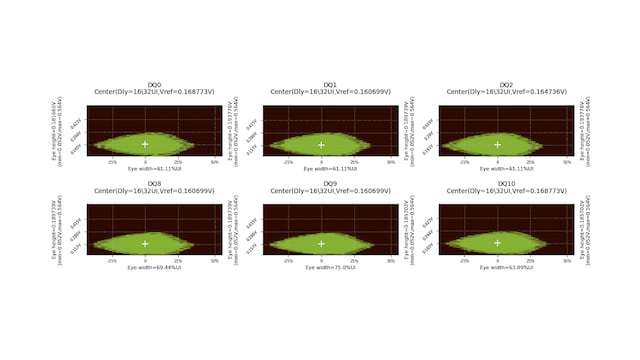

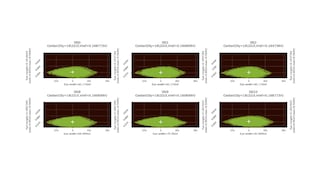

- Virtual Timing Signal Analysis (vTSA) support: RX and TX data eye, CA BUS signals margin and CA Eye test for LPDDR4 DRAM
- Generation of C code for U-boot SPL driver
SerDes tool
- Support for i.MX95 family
- Configuration: User-friendly graphical interface to configure the SerDes hardware block
- Protocol and speed - set the type of traffic and the speed the lane operates
- The tool configures PLL for SerDes
- Advanced configuration parameters - adjust the transmit and receive equalization and electrical parameters to improve the quality of transmission
- Validation: Varies by the build-in SerDes hardware block. The tool provides programmable tests to verify the SerDes hardware block under different conditions
Trusted Execution Environment (TEE)
- Configures protection and isolation of sensitive parts of the application
Support Policy
- Online help and documentation
対応製品
-
プロセッサ＆マイクロコントローラ
-
Armプロセッサ
-
i.MX 6シリーズ・アプリケーション・プロセッサ：マルチコア、Arm® Cortex®-A7コア、Cortex-A9コア、Cortex-M4コア
-
i.MX 7 Series Applications Processors: Multicore Arm® Cortex®-A7, Cortex-M4
-
i.MX 8シリーズ・アプリケーション・プロセッサ マルチコアArm® Cortex®プロセッサ
-
i.MX 9アプリケーション・プロセッサ
-
-
Armマイクロコントローラ
-
i.MX RTクロスオーバーMCU
-
-
