CodeWarrior® TAP

CW_TAP

画像にカーソルを合わせると拡大表示されます。

The CodeWarrior® TAP enables target system debugging via a standard debug port (usually JTAG) while connected to a developer's workstation via Ethernet or USB.

  • Using the CodeWarrior TAP's Ethernet connection, you can debug systems remotely or effectively share a single system with multiple developers
  • When a shared system is not needed, CodeWarrior TAP connects directly to a workstation with a single USB cable via which power is supplied
  • The CodeWarrior TAP is designed to work with CodeWarrior development tools and processors
  • It is a critical debug tool in all phases of the project and is necessary for debugging systems prior to running a fully debugged operating system

対応製品

プロセッサ＆マイクロコントローラ

PowerQUICC II (MPC82xx)

  • MPC8240: Integrated Host Processor with Integrated PCI
  • MPC8264: PowerQUICC® II Processor with 256-ch. HDLC, UTOPIA II, 10/100 Ethernet, IMA
  • MPC8275: PowerQUICC® II Processor with PCI, USB, 128-ch. HDLC, UTOPIA II Ports, 10/100 Ethernet
  • MPC8265: PowerQUICC® II Processor with PCI, 256-ch. HDLC, UTOPIA II, 10/100 Ethernet
  • MPC8270: PowerQUICC® II Processor with PCI, USB, 128-ch. HDLC, 10/100 Ethernet
  • MPC8255: PowerQUICC® II Processor with 128-ch. HDLC, UTOPIA II, 10/100 Ethernet
  • MPC8266: PowerQUICC® II Processor with PCI, 256-ch. HDLC, UTOPIA II, 10/100 Ethernet, IMA
  • MPC8272: PowerQUICC® II Processor with PCI, USB, Security, Communications Processor Module with UTOPIA
  • MPC8247: PowerQUICC® II Processor with PCI, USB, Communications Processor Module
  • MPC8250: PowerQUICC® II Processor with PCI, 128-ch. HDLC, 10/100 Ethernet
  • MPC8260: PowerQUICC® II Processor with 256-ch. HDLC, UTOPIA II, 10/100 Ethernet
  • MPC8271: PowerQUICC® II Processor with PCI, USB, Communications Processor Module with UTOPIA
  • MPC8248: PowerQUICC® II Processor with PCI, USB, Security, Communications Processor Module
  • MPC8280: PowerQUICC® II Processor with PCI, USB, 256-ch. HDLC, UTOPIA II Ports, 10/100 Ethernet, IMA
  • MPC8245: Integrated Host Processor with Integrated PCI
  • MPC8241: Integrated Host Processor with Integrated PCI

PowerQUICC III (MPC85xx)

  • MPC8544E: PowerQUICC® III Processor with DDR2, PCI, PCI Express®, SerDes, 1 GB Ethernet, SGMII, Security
  • MPC8547E: PowerQUICC® III Processor with DDR2, PCI, PCI Express®, SerDes, 1 GB Ethernet, Security
  • MPC8545E: PowerQUICC® III Processor with DDR2, PCI, PCI Express®, SerDes, 1 GB Ethernet, Security
  • MPC8548E: PowerQUICC® III Processor with DDR2, PCI, PCI Express®, Serial RapidIO, SerDes, 1 GB Ethernet, Security
  • MPC8572E: PowerQUICC® III Processor with DDR2/3, Pattern Matching Engine, PCI Express®
  • MPC8543E: PowerQUICC® III Processor with DDR2, PCI, PCI Express®, Serial RapidIO, SerDes, 1 GB Ethernet, Security
  • MPC8533E: MPC8533E PowerQUICC® III Processor
  • MPC8555E: PowerQUICC® III Processor with TDM, DDR, PCI, 1 GB Ethernet, Security, CPM with UTOPIA
  • MPC8569E: PowerQUICC® III Processor with DDR2/3
  • MPC8560: PowerQUICC® III Processor with TDM, DDR, PCI, PCIx Express®, RapidIO, 1 GB Ethernet, Security, CPM with UTOPIA
  • MPC8535E: PowerQUICC® III Processor with DDR2/3, eSDHC, PCI, PCI Express, SATA, SerDes, 1 GB Ethernet, USB, Security
  • MPC8541E: PowerQUICC® III Processor with TDM, DDR, PCI, 1 GB Ethernet, Security, CPM with UTOPIA

PowerQUICC I (MPC8xx)

  • MPC859T: PowerQUICC® Processor with CPM (1 SCC, 2 SMC), 10/100 Ethernet
  • MPC880: PowerQUICC® Processor with CPM with ATM, USB, Dual 10/100 Ethernet
  • MPC870: PowerQUICC® Processor with CPM, USB, Dual 10/100 Ethernet
  • MPC866: PowerQUICC® Processor with CPM (4 SCC, 2 SMC), 10/100 Ethernet
  • MPC852T: PowerQUICC® Processor with CPM (2 SCC, 1 SMC), 10/100 Ethernet
  • MPC875: PowerQUICC® Processor with CPM, USB, Dual 10/100 Ethernet, Security
  • MPC860: MPC860 PowerQUICC® Processor
  • MPC885: PowerQUICC® Processor with CPM with ATM, USB, Dual 10/100 Ethernet, Security
  • MPC855T: PowerQUICC® Processor with CPM (1 SCC, 2 SMC), 10/100 Ethernet
  • MPC853T: PowerQUICC® Processor with CPM (2 SCC, 1 SMC), 10/100 Ethernet
  • MPC859DSL: PowerQUICC® Processor with CPM (1 SCC, 1 SMC), 10/100 Ethernet
  • MPC850: PowerQUICC® Processor with CPM (2 SCC, 2 SMC), 10T Ethernet

PowerQUICC II Pro (MPC83xx)

  • MPC8379E: PowerQUICC® II Pro Processor with DDR2, PCI, SATA, 1 GB Ethernet, USB, Security
  • MPC8323E: Low-Power PowerQUICC® II Pro Processor with DDR2, TDM, PCI, Security, USB, QUICC Engine® with UTOPIA
  • MPC8315E: Low-Power PowerQUICC® II Pro Processor with DDR2, TDM, PCI, PCI Express, SATA, 1 GB Ethernet, Security, USB
  • MPC8349E: PowerQUICC® II Pro Processor with DDR2, Dual PCI, 1 GB Ethernet, Dual USB, Security
  • MPC8309: Low-Power PowerQUICC® II Pro Processor with DDR2, eSDHC, 128-ch. HDLC/TDM, 10/100 Ethernet, USB, IEEE® 1588
  • MPC8313E: Low-Power PowerQUICC® II Pro Processor with DDR2, PCI, 1 GB Ethernet, Security, USB
  • MPC8378E: PowerQUICC® II Pro Processor with DDR2, PCI, PCI Express, 1 GB Ethernet, USB, Security
  • MPC8360E: PowerQUICC® II Pro Processor with DDR2, TDM, PCI, Security, USB, QUICC Engine® with 1 GB Ethernet, UTOPIA
  • MPC8358E: PowerQUICC® II Pro Processor with DDR2, TDM, PCI, Security, USB, QUICC Engine® with 1 GB Ethernet, UTOPIA
  • MPC8321E: Low-Power PowerQUICC® II Pro Processor with DDR2, TDM, PCI, Security, USB, QUICC Engine®
  • MPC8314E: Low-Power PowerQUICC® II Pro Processor with DDR2, TDM, PCI, PCI Express, 1 GB Ethernet, Security, USB
  • MPC8321: Low-Power PowerQUICC® II Pro Processor with DDR2, TDM, PCI, Security, USB, QUICC Engine®
  • MPC8323: Low-Power PowerQUICC® II Pro Processor with DDR2, TDM, PCI, Security, USB, QUICC Engine® with UTOPIA
  • MPC8308: Low-Power PowerQUICC® II Pro Processor with DDR2, eSDHC, PCI Express, eTSEC, USB, IEEE® 1588
  • MPC8377E: PowerQUICC® II Pro Processor with DDR2, PCI, PCI Express, SATA, 1 GB Ethernet, USB, Security
  • MPC8306: Low-Power PowerQUICC® II Pro Processor with DDR2, eSDHC, 128-ch. HDLC/TDM, 10/100 Ethernet, USB, IEEE® 1588
  • MPC8347E: PowerQUICC® II Pro Processor with DDR2, PCI, 1 GB Ethernet, Dual USB, Security
  • MPC8343E: PowerQUICC® II Pro Processor with DDR2, Dual PCI, 1 GB Ethernet, Dual USB, Security

暗号化コプロセッサ

  • C29x: Crypto Coprocessor

デジタル・シグナル・プロセッサ

  • MSC8156E: High-Performance Six-Core DSP with Security

Layerscapeプロセッサ

  • LS2084A: Layerscape 2084A and 2044A Multicore Processors
  • LS1020A: Layerscape® 1020A and 1022A Dual-Core Processors
  • LS2088A: Layerscape® 2088A and 2048A Processors
  • LS1012A: Layerscape® 1012A Low Power Processor
  • LS1046A: Layerscape® 1046A and 1026A Processors
  • LS1028A: Layerscape® 1028A Applications Processor
  • LS1043A: Layerscape® 1043A and 1023A Processors
  • LS1021A: Layerscape® 1021A Dual-Core Processor with LCD Controller
  • LS1088A: Layerscape® 1088A and 1048A Processor
  • LS1024A: Layerscape® 1024A Dual-Core Processor
  • LX2160A: Layerscape® LX2160A, LX2120A, LX2080A Processors

Tシリーズ

  • T4240: QorIQ® T4240/T4160/T4080 Multicore Communications Processors
  • T1042: QorIQ® T1042 and T1022 Multicore Communications Processors
  • T1040: QorIQ® T1040 and T1020 Multicore Communications Processors
  • T1024: QorIQ® T1024/14 and T1023/13 Dual- and Single-Core Communications Processors
  • T2080: QorIQ® T2080 and T2081 Multicore Communications Processors

Qonvergeプラットフォーム

  • B4860: QorIQ® B4860 Baseband Processor
  • BSC9132: QorIQ® Qonverge BSC9132 Dual-Core Processor and Dual-Core DSP
  • BSC9131: QorIQ® Qonverge BSC9131 Single-Core Processor and Single-Core DSP
  • B4420: QorIQ® Qonverge B4420 Baseband Processor

Features

CodeWarrior® TAP

  • Allows either USB or Ethernet (10/100) host connection for the developer workstation
  • USB powered, even when using Ethernet
  • Low-cost removable probe tips sold separately
  • Supports debugging via JTAG interface
  • Automatically supports system voltage levels from 1.2 to 3.3
  • Supports all available core speeds and voltages for supported NXP® processors
  • As a convenience feature, the CodeWarrior can connect to a target systems serial port allowing telnet access to a remotely located system and control of the U-Boot program.
  • In conjunction with the CodeWarrior development system, the CodeWarrior TAP:
    • Programs system flash memory during debugging and development phases of the project, including most popular flash memories, but specifically all flash memories used with NXP development systems
    • Controls the target development system even when the system may have crashed during development
    • Offers complete system visibility and control, including reading/writing of CPU registers, memory mapped registers, block reading/writing of memories, single-step debugging, setting software and hardware breakpoints, and monitoring target system status
    • Gives control over the target system execution, including control of one or all cores, and resets
  • Contact NXP if you are interested in:
    • Integrating this probe into your software
    • Using this probe as your target debug probe

購入オプション

CWH-CTP-BASE-HE-Image

クリックして展開

  • CWH-CTP-BASE-HE
    アクティブ

  • CodeWarrior TAP High Performance Probe Base unit, supports Ethernet and USB (order tip separately).

  • Base Unit: CWH-CTP-BASE-HE

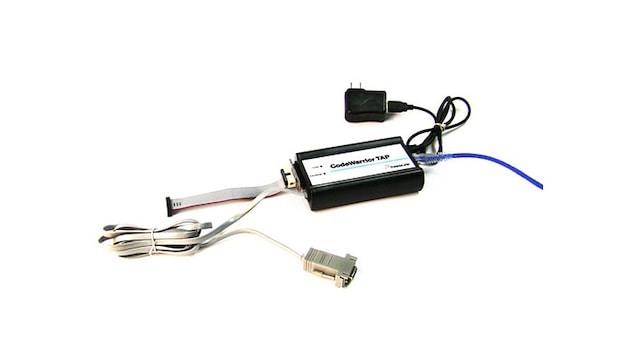

    • CodeWarrior TAP probe
    • CodeWarrior TAP probe USB power supply
    • CodeWarrior TAP USB cable
    • CodeWarrior TAP RJ11/DB9 adapter
    • CodeWarrior TAP serial cable

    Companion Probe Tips (Order Separately)

  • $501.40 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 7
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
